Place of Origin: | China |
Brand Name: | CNXY |
Certification: | CE, RoHS |
Model Number: | ZR011 |
Minimum Order Quantity: | 10pcs |
---|---|
Packaging Details: | common carton |
Delivery Time: | samples 2-3 days, |
Payment Terms: | T/T,Western Union, paypal |
Supply Ability: | 1000pcs per week |
Temperature: | -49 To +176°F (-45 To +80°C) | Protection Type: | IP20 |
---|---|---|---|
Size: | 2.6 X 2.0 X 1.8” (67 X 50 X 46mm) | Contact Type: | Snap-action Contact |
Switch Difference: | 4%RH(±3%tolerance_) | Weight: | 3.2 Oz. (90g) |
Highlight: | semiconductor heater,din rail thermostat |

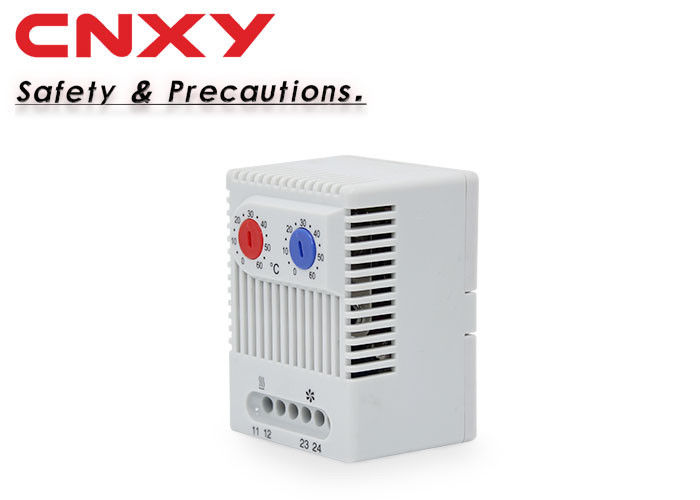

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment.
1.Thermostat NC (normally closed):
Thermostat opens at temperature rise - for regulating heaters or for switching signal devices. Comes with red temperature dial.
2.Thermostat NO (normally open):
Thermostat closes at temperature rise - for regulating filter fans and heat exchangers or for switching signal devices. Comes with blue temperature dial.
Temperature range: -49 to +176°F (-45 to +80°C)
Protection type: IP20
Contact type: snap-action contact
Mounting: clip for 35mm DIN rail, EN 60 715
Size: 2.6 x 2.0 x 1.8” (67 x 50 x 46mm)
Weight : 3.2 oz. (90g)
Part No. | Setting Range | Setting Range | ||
01172.0-00 | NC - open on rise | 0 to +60°C | NC - open on rise | 0 to +60°C |
01172.0-01 | NC - open on rise | +32 to +140°F | NC - open on rise | +32 to +140°F |
01175.0-00 | NC - open on rise | -10 to +50°C | NC - open on rise | +20 to +80°C |
01175.0-01 | NC - open on rise | 14 to +122°F | NC - open on rise | +68 to +176°F |
01176.0-00 | NC - open on rise | 0 to +60°C | NC - open on rise | 0 to +60°C |
01176.0-01 | NC - open on rise | +32 to +140°F | NC - open on rise | +32 to +140°F |
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the samples?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.
