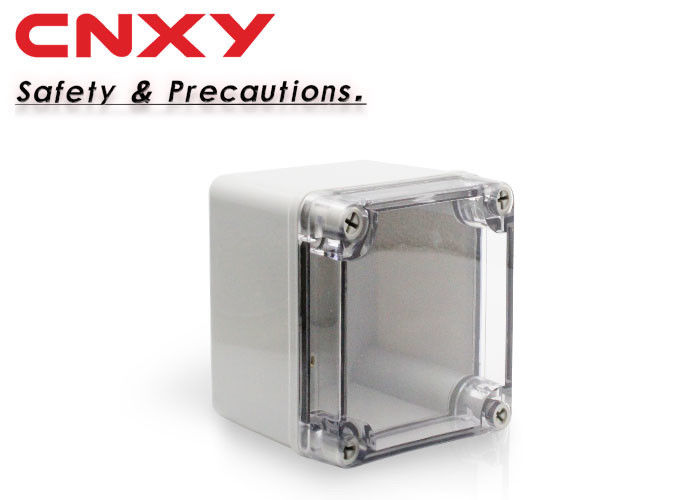

Square Transparent Waterproof Junction Box -20 To 120 ℃ Working Temperature

Product Details:

Place of Origin:	China
Brand Name:	CNXY
Certification:	CE, RoHS
Model Number:	M3-101007T

Payment & Shipping Terms:

Minimum Order Quantity:	10
Packaging Details:	common carton
Delivery Time:	samples 2-3 working days, large quantity 7-20 working days
Payment Terms:	T/T, Western Union, paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Material:	ABS Body, PC Transparent Lid	IP Grate:	IP67
Color:	Grey	Model:	M3-101007T
Size:	10010075mm	OEM:	Yes
High Light:	waterproof electrical junction box , watertight junction box

Square Transparent Waterproof Junction Box -20 To 120 ℃ Working Temperature

The product weighs approximately 1/4 the weight of an iron box and can be easily installed or moved,The product is free from corrosion, carries superior insulation..
The Product has passed waterproof and dustproof carried out under rigid quality standards.(IP 67)
The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal , Relay and Sensor , Communication and joint Box etc.

Material: ABS body, PC transparent lid

Protection rank up to IP 67.

Color:RAL-7032

Dimension: 100*100*70mm

Working temperature: -20 ℃ to 120 ℃.

Cover: Transparent cover and nontransparent cover optional.

OEM: Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.

Sizes available.

Model	Dimension (mm)	Mounting plate	Cartin size (cm)	Quantity (pcs/ctn)
M3-060505	655055	not available	52×40×57	600
M3-090605	956555	built-in	70×53×30	280
M3-090605T
M3-101007	10010075	not available	70×53×30	135
M3-101007T
M3-110804	1108045	available	68×52×25	190
M3-110804T
M3-110807	1108070		70×53×30	156
M3-110807T
M3-110808	1108085		68×52×25	108
M3-110808T
M3-130807	1308070		68×52×25	108
M3-130807T
M3-130808	1308085		68×52×25	90
M3-130808T
M3-180807	1808070		68×52×25	74
M3-180807T
M3-250807	2508070		68×52×25	54
M3-250807T
M3-250808	2508085		68×52×25	48
M3-250808T
M3-121207	12512575		68×52×25	72
M3-121207T
M3-121210	125125100		68×52×25	50
M3-121210T
M3-171207	17512575		70×53×30	54
M3-171210	175125100		60×40×65	60
M3-171409	17014095		70×53×30	45
M3-171409T
M3-171710	175175100		70×53×30	32
M3-201507	20015075		60×40×65	60
M3-201507T
M3-201510	200150100		60×40×65	48
M3-201510T
M3-201513	200150130		68×47×42	30
M3-251510	250150100		70×53×30	28
M3-251510T
M3-251513	250150130		68×47×52	30
M3-251513T
M3-202009	20020095		60×40×65	36
M3-202009T
M3-202013	200200130		60×40×65	30
M3-202013T
M3-281913	280190130		68×40×58	20
M3-281913T

Details:

Square Transparent Waterproof Junction Box -20 To 120 ℃ Working Temperature 0

1.100% ABS, none recycled material
2.High waterproof: IP67
3.Plastic screw: not easy to rust, fall-out prevented
4.Machine formed gasket, no need to insert gasket by hands, not affected by weather

Square Transparent Waterproof Junction Box -20 To 120 ℃ Working Temperature 1

Application:

It is convenient for the general &mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.

Feature: Waterproof, dust-proof, high-strength insulation. Any opening is available according to the customers’ demands, it is very complete in specification and convenient in installation.

Square Transparent Waterproof Junction Box -20 To 120 ℃ Working Temperature 2
