High Performance Control Cabinet Heater 108m3 / H Free Blowing Flat Design

High Performance Control Cabinet Heater 108m3 / H Free Blowing Flat Design

  • High Performance Control Cabinet Heater 108m3 / H Free Blowing Flat Design
High Performance Control Cabinet Heater 108m3 / H Free Blowing Flat Design
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: HVL031 400w
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: common carton
Delivery Time: samples 2-5 days. large quantity 7-25days
Payment Terms: T/T,Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Working Temperature: -45 To +70°C (-49 To +158°F) Mounting: Clip For 35mm DIN Rail, EN 50022
Heater Body: Extruded Aluminium Profile, Size: H*W*D 1.85 X 4.68 X 5.94” (47 X 119 X 151mm)
Min. Airflow (free Blowing): 63 Cfm (108m3/h) Heating Element: PTC Heating Element
High Light:

thermostat controlled heater

,

semiconductor heater

Small din rail mounted control cabinet heater cabinet heater with fan 400w

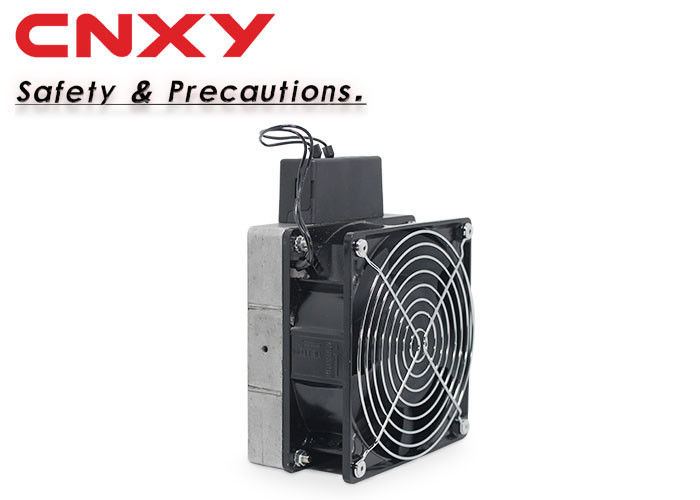

The compact HVL 031 high-performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. For large OEM use, this fan heater can also be provided without the fan, in which case the OEM/customer must provide a fan which meets the minimum airflow requirements.

  1. Temperature range: -49 to +158°F (-45 to +70°C)
  2. Protection type: I (grounded) / IP20
  3. Power: 400 W
  4. Mounting: clip for 35mm DIN rail, EN 60 715
  5. Size: H*W*D 1.85 x 4.68 x 5.94” (47 x 119 x 151mm)
  6. Weight : 2.0 lbs. (900g)


Detail introduction

High Performance Control Cabinet Heater 108m3 / H Free Blowing Flat Design 0



Part No. - 120VAC Part No. - 230VAC Heating capacity

Min. airflow

(free blowing)

Dimensions (as mounted) Weight (approx.)
03102.9-00 03102.0-00 100W 20 cfm (35m3/h) 1.85 x 3.15 x 4.41” (47 x 80 x 112mm) 1.3 lbs. (600g)
03103.9-00 03103.0-00 150W 20 cfm (35m3/h) 1.85 x 3.15 x 4.41” (47 x 80 x 112mm) 1.3 lbs. (600g)
03113.9-00 03113.0-00 200W 63 cfm (108m3/h) 1.85 x 4.68 x 5.94” (47 x 119 x 151mm) 2.0 lbs. (900g)
03114.9-00 03114.0-00 300W 63 cfm (108m3/h) 1.85 x 4.68 x 5.94” (47 x 119 x 151mm) 2.0 lbs. (900g)
03115.9-00 03115.0-00 400W 63 cfm (108m3/h) 1.85 x 4.68 x 5.94” (47 x 119 x 151mm) 2.0 lbs. (900g)
  • Using the fan to speed up the blowing of clod air  through the heater,making the efficiency of heating.
  • Safe cale: Plastic UL94 standard V-0 anti flame
  • Taiwan-imported fan: more working life, big airflow,none noise,
  • Material: aluminum alloy, hard and fast when heated



Advantage

  1. Compact size
  2. Flat design
  3. Built-in overheat protection
  4. 3-side DIN rail mountable

FAQ

Q1. Can I have a sample order for test?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-4 days, mass production time needs 1-2 weeks for order quantity more than 1000pcs.

Q3. Do you have any MOQ limit for box order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
