|Place of Origin:||China|
|Minimum Order Quantity:||10|
|Packaging Details:||common carton|
|Delivery Time:||samples 2-3 working days, large quantity 7-20 working days|
|Payment Terms:||T/T, Western Union, paypal|
|Supply Ability:||1000pcs per week|
|Material:||ABS,other Material Available||IP Grate:||IP65|
|Weight:||0.2kg||Temperature:||ABS -20~120℃, PC-45~130℃|
plastic project box,
electronic project enclosure

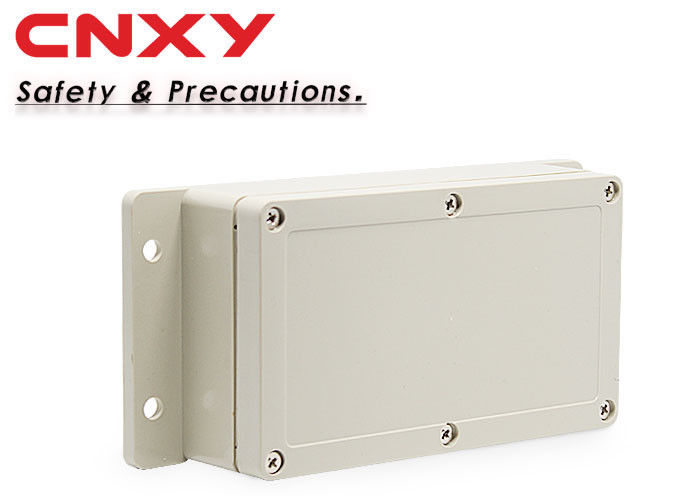

Fixed ear plastic waterproof box adopts quality ABS engineering plastic or polycarbonate (PC) material,suitable for electrical and electronic control equipment ,shipbuilding ,petrochemical industry ,large factories, coastal factories ,terminal water treatment facilities ,all kinds of natural disaster prevention equipment in harsh industrial environment.product adopt plastic bolt design,prevent loss effectively.1/4 weight of metal box ,impact resistance ,corrosion resistance,long life ,good insulation performance ,easy processing.
Product Name : Junction Box;
Mounted Type : Surface Mounted
Material : Plastic;
Ingress Protection Rating : IP65
Total Size : 158 x 90x 46mm/6.2" x 3.5" x 1.8"(L*W*H);
Internal Size : 153x 85x 40mm/ 6" x 3.3" x 1.6"(L*W*H)
Fixing Hole Diameter : 4.3mm/0.17";
Fixing Hole Center Distance : 72 x 77mm/2.9" x 3"(L*W)
Net Weight : 200g;Package : 1 x Junction Box 1 x Junction Box, 4 x Screw
We also produce other type of boxes, hinged ones, lockable ones, aluminum ones and so on.
A white gasket is put inside the box. It needs inserting by clients. And we provide hand-inserting service, also machine sealing. Latter is recommend.
In the bottom of the box, there is brass stud for mounting terminals, pcb, and other components.
Mounting flange on the box, easier for installation.
Fixed ear plastic waterproofroof box adopts quality ABS engineering plastic or polycarbonate (PC) material,wuitable for electrical and electronic control equipment ,shipbuilding ,petrochemical industry ,large factories, conastal factories ,terminal water treatment facilities ,all kinds of natural disaster prevention equipmne in harsh industrial environment.product adopt plastic bolt design,prevent loss effectively.1/4 weight of metal box ,impact resistance ,corrosion resistance,long life ,good insulation performance ,easy processing.
1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for
