0.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws

0.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws

  • 0.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws
0.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M2-110905G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS,other Material Available IP Grate: IP65
Color: Grey Size: 115*90*55mm
Weight: 0.18kg Temperature: ABS -20~120℃, PC-45~130℃
High Light:

plastic project box

,

electronic project enclosure

0.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws

Our Enclosures are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets.

They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ( protect instruments even under the adverse environment).

Material:high quality of polycarbonate PC and ABS engineering plastics.

Workplace:In the bad industrial environment to the electrical and electronic control unit or various prevent natural disasters equipment
Feature:waterproof,dust-free,shock resistance,and rustproof,long lifetime,good insulating property,easy machining.
Temperature range:-20°C~120°C

Implement standard:EN60529 IP 65

Transparent cover and nontransparent cover optional.

Full range of sizes available.

Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.

Sizes available.



Model Dimension(mm) Carton size
(cm)
Quantity
(pcs/ctn)
M2-060503G 64*58*35 68*52*25 448
M2-060503T
M2-080503G 83*58*33 68*52*25 380
M2-080503T
M2-100604G 100*68*40 70*53*30 304
M2-100604T
M2-100605G 100*68*50 70*53*30 240
M2-100605T
M2-110803G 115*85*35 70*53*30 210
M2-110803T
M2-110905G 115*90*55 70*53*30 144
M2-110905T
M2-110906G 115*90*68 68*52*25 84
M2-110906T
M2-121005G 125*100*52 70*53*30 138
M2-120806G 120*81*65 68*52*25 102
M2-120806T
M2-150904G 158*90*46 70*53*30 117
M2-150904T
M2-150906G 158*90*64 70*53*30 90
M2-150906T
M2-161609G 160*160*90 70*53*30 36
M2-161609T
M2-201207G 200*120*75 68*52*25 42
M2-201207T
M2-231508G 230*150*87 70*53*30 28
M2-231508T



We also produce other type of boxes, hinged ones, lockable ones, aluminum ones and so on.



Details:

0.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws 00.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws 10.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws 20.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws 30.18 Kg Electrical Enclosure Box CNC Machine Sealing With Steel Screws 4

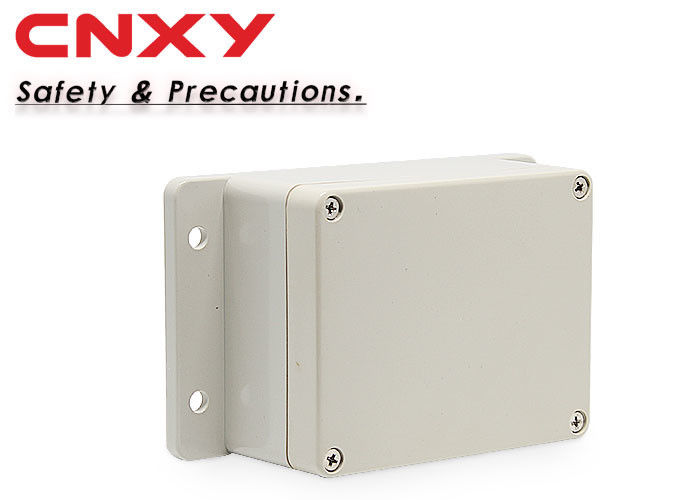

With mounting flanges, easier to install indoor and outdoor.

Accessories: formed sealing rope, steel screws. ( Stainless steel screws are available)

Sealing ways: 1 ordinary hand-insert the formed sealing rope

                       2 CNC machine sealing, convenient and not affected by the weather.

With mounting holes, convinent to install the electrical components.

Tips to ensure the effect of the IP65 waterproof:

1)Please check and make sure rubber grommet being completely filled around the lid.(The rubber grommet has elasticity. If the rubber grommet is shorter, you can stretch it to the proper length when you are installing it on the corner parts)
2)If there is any issues,please contact our customer service,our customer service representatives are 24/7 to help!



OEM service:

Material: ABS, PC, UL,flame resistent

Color: Grey, orange, green, black, and so on. Transparent lid type available.

Hole drilling: round, rectangle, square,

Mounting plate, inner door for some some series.

Electronic components fixing such as cable glands, pcb, terminal.





Application:

Fixed ear plastic waterproofroof box adopts quality ABS engineering plastic or polycarbonate (PC) material,wuitable for electrical and electronic control equipment ,shipbuilding ,petrochemical industry ,large factories, conastal factories ,terminal water treatment facilities ,all kinds of natural disaster prevention equipmne in harsh industrial environment.product adopt plastic bolt design,prevent loss effectively.1/4 weight of metal box ,impact resistance ,corrosion resistance,long life ,good insulation performance ,easy processing.
