|31#, Yinhe Road, Liushi Town, Yueqing, Wenzhou, Zhejiang, China 325604|
|Place of Origin:||China|
|Minimum Order Quantity:||10|
|Packaging Details:||common carton|
|Delivery Time:||samples 2-3 working days, large quantity 7-20 working days|
|Payment Terms:||T/T, Western Union, paypal|
|Supply Ability:||1000pcs per week|
|Material:||ABS,other Material Available||IP Grate:||IP65|
|Weight:||0.44kg||Temperature:||ABS -20~120℃, PC-45~130℃|
plastic project box,
electronic project enclosure
Ordinary type plastic waterproof box adopts quality ABS engineering plastic or polycarbonate (PC) material, suitable for electrical and electronic control equipment ,shipbuilding ,petrochemical industry ,large factories, coastal factories ,terminal water treatment facilities ,all kinds of natural disaster prevention equipment in harsh industrial environment. Product adopt plastic bolt design, prevent loss effectively.1/4 weight of metal box ,impact resistance ,corrosion resistance, long life ,good insulation performance ,easy processing.

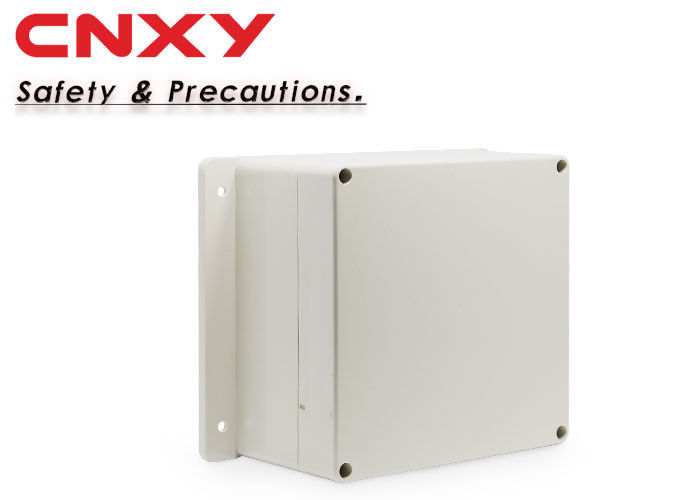

Product Name: Junction Box
Outer Size: 160*160*90mm / (L*W*H)
Main Color: Light Gray
Main Material: ABS,PC
Screw Thread Dia.: 4mm(0.16inch)
Net Weight: 440g
1 x Waterproof Junction Box
1 x Rubber Grommet
6 x Screws
We also produce other type of boxes, hinged ones, lockable ones, aluminum ones and so on.
With mounting flanges, easier to install indoor and outdoor.
Accessories: formed sealing rope, steel screws. ( Stainless steel screws are available)
Sealing ways: 1 ordinary hand-insert the formed sealing rope
2 CNC machine sealing, convenient and not affected by the weather.
With mounting holes, convenient to install the electrical components.
OEM service is offered
Water-proof level up to IP66
Products choose high quality thermoplastic plastics ABS, PC, nylon, also can according to the customer asked to select material, non-corrosive good insulation.
This product is suitable for indoor and outdoor electrical ,electronic, communication, fire equipment ,control panel .terminal BOX,PCB BOX, shipping, oil chemical, large factories, coastal factories, discharging terminal equipment, dirty wastewater treatment facilities, environmental hazards facilities, etc.
1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for
