|31#, Yinhe Road, Liushi Town, Yueqing, Wenzhou, Zhejiang, China 325604|
|Place of Origin:||China|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||common carton|
|Payment Terms:||T/T,Western Union, paypal|
|Supply Ability:||1000pcs per week|
|Voltage:||AV120V 15(2)A, AC250V 10(2)A||Temperature:||0-60℃|
|Function:||Normally Closed,contact Breaker For Regulating Heater||Contact Resistance:||<10mΩ|
|Protection Type:||IP20||Service Life:||>100000cycles|

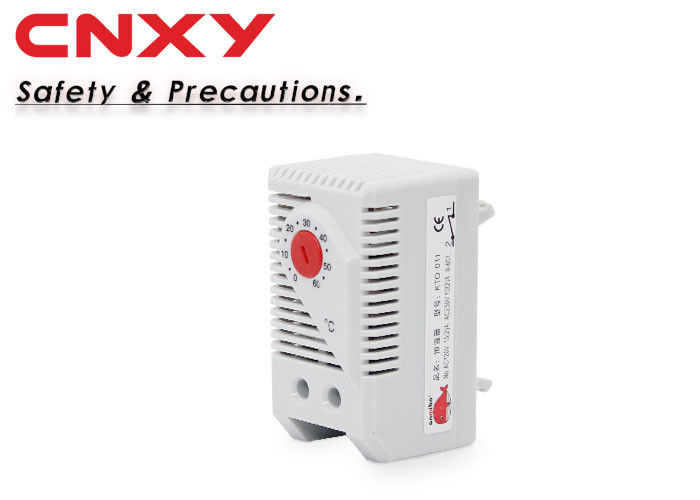

din rail thermostat
Temperature range: -4 to +176°F (-20 to +80°C)
Protection type: IP20
Contact type: snap-action contact
Mounting: clip for 35mm DIN rail, EN 60 715
(or for Exhaust Filter EF 118 Series)
Size: 2.4 x 1.3 x 1.7” (60 x 33 x 43mm)
Weight : 1.4 oz. (40g)
Function:normally closed,contact breaker for regulating heater
Note: after seting the temperature, the control heater is normally closed in the situation, when the actual temperature is higher than the set one, the circuit is always closed. the actual temperature is higher than the set one. If the temperature goes down near the set one, the heater would start to heat.
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting way: 35mm DIN rail, EN60715 or for exit filter EF 118 series
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the samples?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.
Contact Person: cnxy
