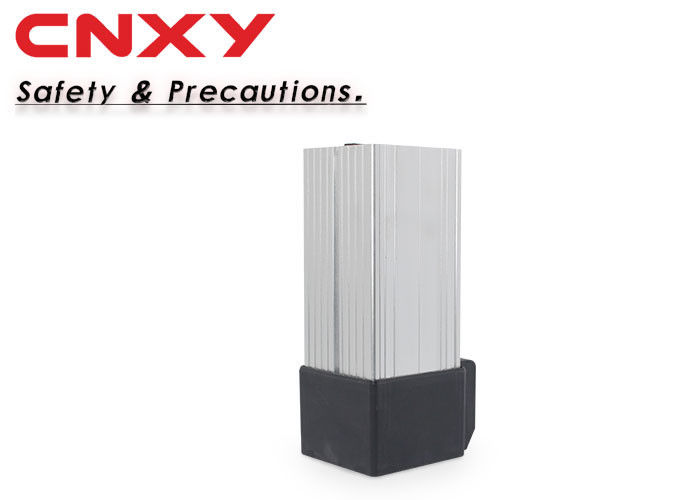

Multifunction Thermostat Controlled Heater 250-400 Watt Long Life Span

Multifunction Thermostat Controlled Heater 250-400 Watt Long Life Span

Multifunction Thermostat Controlled Heater 250-400 Watt Long Life Span

Product Details:

Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: HGL-046 400w

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: common carton
Payment Terms: T/T,Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Working Temperature: -45 To +70°C (-49 To +158°F) Mounting: Clip For 35mm DIN Rail, EN 50022
Heater Body: Extruded Aluminium Profile, Size: H*W*D222*100*85mm
Voltage: 120VAC, 50/60HZ Heating Element: PTC Heating Element

Multifunction Thermostat Controlled Heater 250-400 Watt Long Life Span

Compact fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. With internal terminal connector.



Temperature range: -45 to +70°C (-49 to +158°F)

Protection type: I (earthed) / IP20

Power:250W~400W

Mounting: clip for 35mm DIN rail, EN 60 715

Size: H*W*D 222*100*85mm

Weight : 1.1kg~1.4kg

Packing Info.:

Place of origin: Zhejiang, China



Part. No. Operating voltage Heating capacity Length(L) Weight
04640.0-00 230VAC, 50/60HZ 250W 182mm 1.1kg
04641.0-00 230VAC, 50/60HZ 400W 222mm 1.4kg
04640.9-00 120VAC, 50/60HZ 250W 182mm 1.1kg
04641.9-00 120VAC, 50/60HZ 400W 222mm 1.4kg
04640.1-00 24VDC 250W 182mm 1.1kg
04640.2-00 48VDC 250W 182mm 1.1kg
04641.2-00 48VDC 400W 222mm 1.4kg



Detail introduction

Multifunction Thermostat Controlled Heater 250-400 Watt Long Life Span



  1. Heat and dehumidify: prevents forming condensation for sudden drop of temperature to in the cabinet.
  2. Adopt cyclic heating technology to heat,faster, at the same time there is temperature protection device to keep the heating safe and stable.
  3. With primary forming technology, metal drawing technology,aluminum processing.
  4. There is firmer cable connection with clasp ring on the bottom interface.
  5. Din rail mounting design, easy to disassemble,and the crank spring makes the installation firm.
  6. he well-designed 10 % increasing of the cross-sectional area of the gap makes the heating more comprehensive.



Advantage

  • Compact design
  • Clip fixing
  • Long service life
  • Maintenance free
  • Temperature safety cut-out
