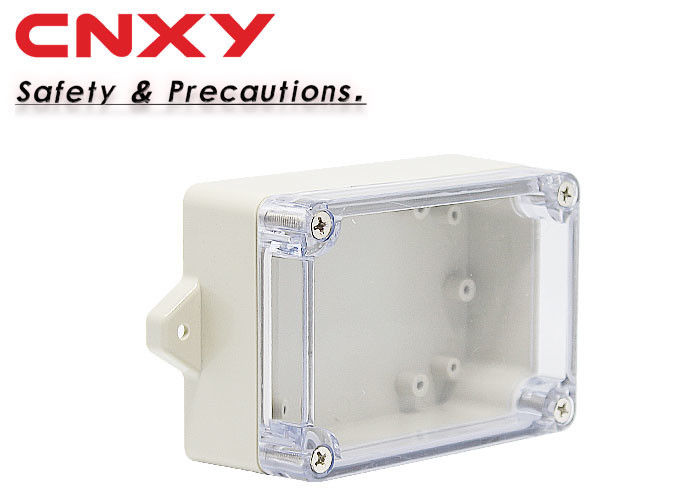

0.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material

0.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material

  • 0.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material
0.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M2-100604T
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS+AS IP Grate: IP65
Color: Grey Body+ Clear Lid Size: 100*68*40mm
OEM: Yes Weight: 0.1kg
High Light:

plastic enclosure box

,

electronic project enclosure

0.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material

1. Material: ABS, custom: PC, ul, flame resistent
2. Size:100*68*40mm
3. Certificate:CE ROHS
4. 1 year warranty.
5.More than 10 years manufacturer.
6. Clour : transparent AS lid
7. This product is used for indoor and outdoor electrical ,electronic, communication, fire equipment ,control panel .terminal BOX,PCB BOX, shipping, oil chemical, large factories, coastal factories, discharging terminal equipment, dirty wastewater treatment facilities, environmental hazards facilities and so on.
8. Products adopt high quality thermoplastic plastics ABS ,PC ,nylon, also can according to the customer asked to select material, non-corrosive good insulation.
9. Can punching and printing as your requirements.


Sizes available.

Model Dimension(mm) Carton size
(cm)
Quantity
(pcs/ctn)
M2-060503G 64*58*35 68*52*25 448
M2-060503T
M2-080503G 83*58*33 68*52*25 380
M2-080503T
M2-100604G 100*68*40 70*53*30 304
M2-100604T
M2-100605G 100*68*50 70*53*30 240
M2-100605T
M2-110803G 115*85*35 70*53*30 210
M2-110803T
M2-110905G 115*90*55 70*53*30 144
M2-110905T
M2-110906G 115*90*68 68*52*25 84
M2-110906T
M2-121005G 125*100*52 70*53*30 138
M2-120806G 120*81*65 68*52*25 102
M2-120806T
M2-150904G 158*90*46 70*53*30 117
M2-150904T
M2-150906G 158*90*64 70*53*30 90
M2-150906T
M2-161609G 160*160*90 70*53*30 36
M2-161609T
M2-201207G 200*120*75 68*52*25 42
M2-201207T
M2-231508G 230*150*87 70*53*30 28
M2-231508T



Details:

0.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material 00.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material 10.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material 20.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material 30.1 Kg Flanged Plastic Box , Clear Waterproof Enclosure ABS Material 4


With mounting flanges, easier to install indoor and outdoor.
Accessories: formed sealing rope, steel screws. ( Stainless steel screws are available)
Sealing ways: 1 ordinary hand-insert the formed sealing rope
                       2 CNC machine sealing, convenient and not affected by the weather.
With mounting holes, convinent to install the electrical components.


Advantages

1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for
choice.


Application:

Ideally suited for mounting printed circuit boards or used as junction boxes. Also suitable for mounting modular electric installation devices.
Product designed to meet IP66. Lap joint construction and rubber sealing strip between lid and base provides protection against access dust and water.
Besides, with futures of shock resistance, rustproof, long lifetime, good insulating property, easy machining, the product are widely used in electronic and electrical industry.


FAQ

Q:Are you a factory or trading company?

A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q: How long is your delivery time?

A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.

Q: Could I put my own logo on it?

A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
