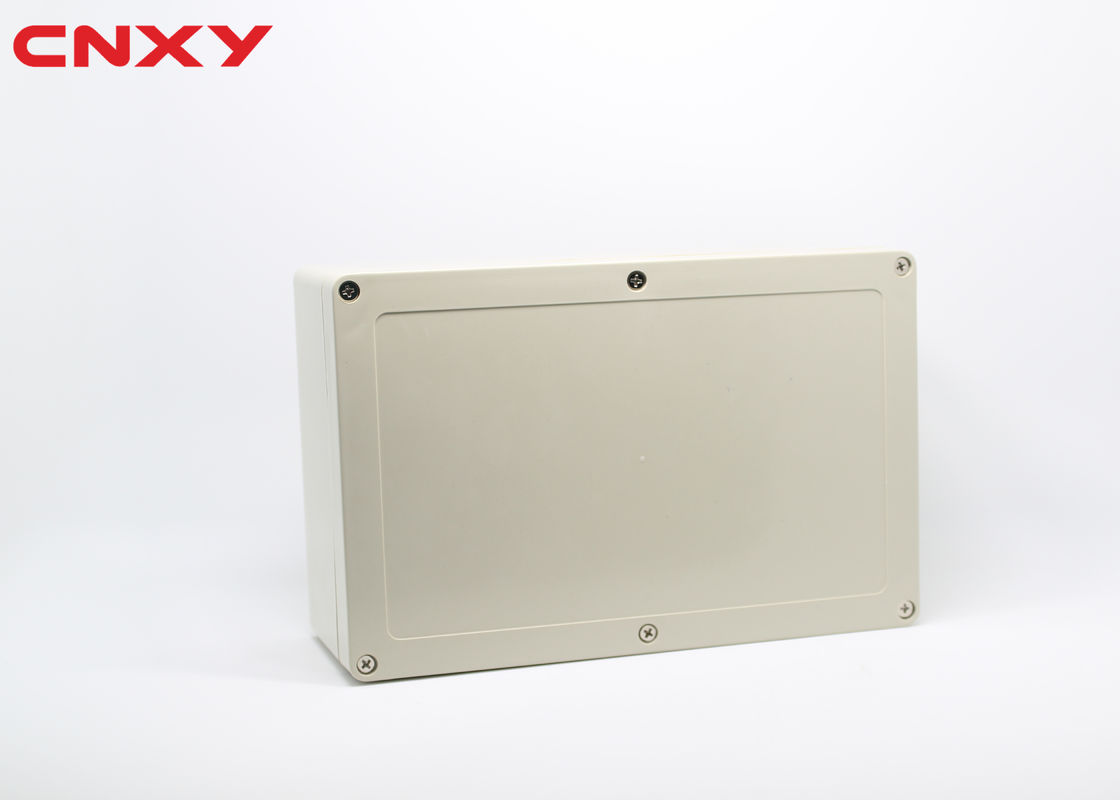

Waterproof dustproof IP65 ABS plastic junction box grey waterproof enclosure 230*150*87 mm

Waterproof dustproof IP65 ABS plastic junction box grey waterproof enclosure 230*150*87 mm

Material:ABS
Color:  grey
Size:230*150*87mm
Waterproof : IP65
Working temperature:ABS -20~120, PC-45~130
Working life: ABS one about 5 years, PC one for 10 years
Features: moisture proof, sunscreen, anti-corrosion, durable for years use
The electrical junction box is easy to operate and repair, no cable cutting, more convenient
Material: ABS,Rubber; Main Color: Light Gray; Net Weight: 430g; Rating: IP65; Screw Thread Dia.: 0.16"/4mm
Suitable for indoor and outdoor electrical ,communications
Outer Size of electrical enclosure : 9"x5.9"x3.4"(230mmx150mmx87mm)/(L*W*H); Inner Size of electrical enclosure(Approx.) : 8.8"x5.7"x3.2"(226mmx146mmx83mm)/(L*W*H)- - (Allowable Error: 2mm)

Size

Sizes available.

Details:

1. Sealing ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion, making much better waterproof and longer lifetime. Or could choose machine sealing service.
2. In the bottom of the box, there is mounitng stud for mounting terminals, pcb, and other components.
3. Steel mounting plate available.

Advantage

1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or moved,The product is free from corrosion,carries superior insulation.
2.Waterproof and dust-free product which gets through strict quality inspections. Proved quality in many related tests(IP 66).
3.The use is also convenient for the installation of Terminal Substitution Rail, button box, mini terminal, signal box,Relay and Sensor, Communication and joint Box etc.
