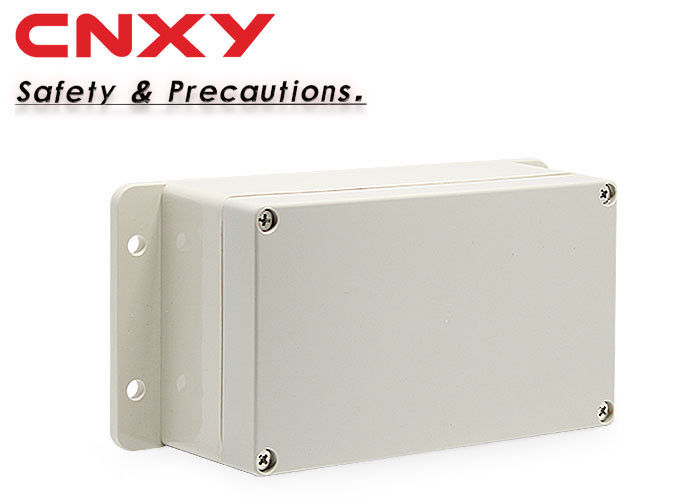

Water Resistant Flanged Plastic Box PC -45 To 130 ℃ Temperature CE Standard
Fixed ear plastic waterproof box adopts quality ABS engineering plastic or polycarbonate (PC) material,suitable for electrical and electronic control equipment ,shipbuilding ,petrochemical industry ,large factories, coastal factories ,terminal water treatment facilities ,all kinds of natural disaster prevention equipment in harsh industrial environment.product adopt plastic bolt design,prevent loss effectively.1/4 weight of metal box ,impact resistance ,corrosion resistance,long life ,good insulation performance ,easy processing.
Product Name : Junction Box;
Mounted Type : Surface Mounted
Material : Plastic;
Ingress Protection Rating : IP65
Total Size : 158 x 90x 64mm(L*W*H);
Net Weight : 200g;Package : 1 x Junction Box, 6 x Screw,1 sealing ring
Sizes available.
| Model |
Dimension |
| M2-060503G |
64*58*35 |
| M2-060503T |
| M2-080503G |
83*58*33 |
| M2-080503T |
| M2-100604G |
100*68*40 |
| M2-100604T |
| M2-100605G |
100*68*50 |
| M2-100605T |
| M2-110803G |
115*85*35 |
| M2-110803T |
| M2-110905G |
115*90*55 |
| M2-110905T |
| M2-110906G |
115*90*68 |
| M2-110906T |
| M2-121005G |
125*100*52 |
| M2-120806G |
120*81*65 |
| M2-120806T |
| M2-150904G |
158*90*46 |
| M2-150904T |
| M2-150906G |
158*90*64 |
| M2-150906T |
| M2-161609G |
160*160*90 |
| M2-161609T |
| M2-201207G |
200*120*75 |
| M2-201207T |
| M2-231508G |
230*150*87 |
| M2-231508T |
We also produce other type of boxes, hinged ones, lockable ones, aluminum ones and so on.
Details:
With mounting flanges, easier to install indoor and outdoor.
Accessories: formed sealing rope, steel screws. ( Stainless steel screws are available)
Sealing ways: 1 ordinary hand-insert the formed sealing rope
2 CNC machine sealing, convenient and not affected by the weather.
With mounting holes, convenient to install the electrical components.
Application:
Ideally suited for mounting printed circuit boards or used as junction boxes. Also suitable for mounting modular electric installation devices.
Product designed to meet IP66. Lap joint construction and rubber sealing strip between lid and base provides protection against access dust and water.
Besides, with futures of shock resistance, rustproof, long lifetime, good insulating property, easy machining, the product are widely used in electronic and electrical industry.
Advantages
1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for
choice.
