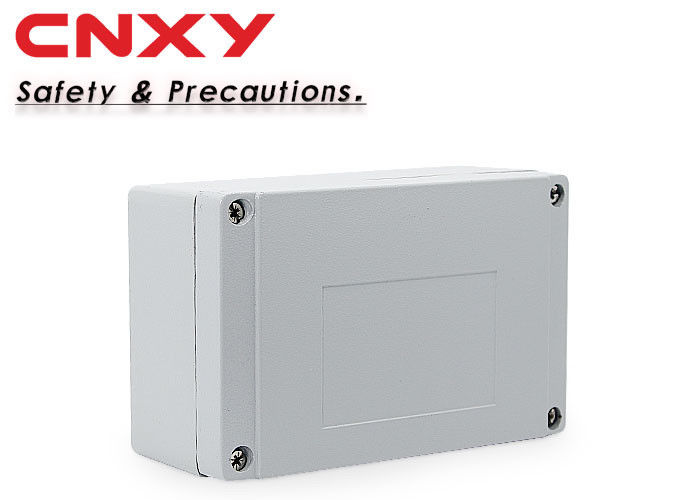

Water Resistant Aluminum Project Enclosure Hole Cutting Easy Operation

Water Resistant Aluminum Project Enclosure Hole Cutting Easy Operation

  • Water Resistant Aluminum Project Enclosure Hole Cutting Easy Operation
Water Resistant Aluminum Project Enclosure Hole Cutting Easy Operation
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M4-161006
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: Aluminum IP Grate: IP66
Color: Grey Size: 160*100*65mm
OEM: Yes Weight: 0.7kg
High Light:

aluminum enclosure box


aluminium junction box

Water Resistant Aluminium Junction Box Hole Cutting Easy Operation

This serial enclosure is widely used for liquid fluid, pressure, moisture etc, sensor industry, with watertight and explosion proof capability, material is aluminum alloy, the color for these enclosure can be changed by painting or coating certain modification can be done according to your requirement.
Protection level :IP66
Material: Aluminium
Cover: Aluminium
Screw: metal
Size: 125*80*60mm
OEM service available: hole cutting, logo printing
Aluminum waterproof box is made from casting aluminum. suitable for all kinds of middle connector box ,terminal box .Small mechanical and electrical instrument. communications contact box equipment. It could be used in machinery ,ship ,car, production lines and other equipment of petrochemical industry and environment . With strong impact resistance. chemical resistance ,economic price, easy operation .
Sizes available.

Model Size
M4-060503 64*58*35
M4-120805 120*80*55
M4-120805-2 120*80*55
M4-130805 135*85*56
M4-120805-3 125*80*58
M4-181207 188*120*78
M4-181207-2 188*120*78
M4-100605 100*68*50
M4-221405 222*145*55
M4-221405-2 222*145*55
M4-221407 222*145*75
M4-221408 222*145*80
M4-110603 111*64*37
M4-181405 180*140*55
M4-090303 90*36*31
M4-221507 228*150*75
M4-201307 200*130*78
M4-181308 185*135*85
M4-221509 220*155*95
M4-251808 250*185*88
M4-251909 250*190*90
M4-080706 80*75*60
M4-170805 175*80*56
M4-170808 175*80*80
M4-250806 250*80*60
M4-250808 250*80*80
M4-110605 115*65*55
M4-161006 160*100*60
M4-151008 150*100*80
M4-110905 115*90*58
M4-110906 115*90*60
M4-251208 250*120*82
M4-321209 320*120*90
M4-361609 360*160*95
M4-101006 100*100*60
M4-141407 140*140*75
M4-141004 145*100*45
M4-121208 120*120*82
M4-161607 160*160*70
M4-161609 160*160*90
M4-161608 160*160*86
M4-241607 240*160*75
M4-241610 240*160*100
M4-261807 265*185*75
M4-261809 260*185*96
M4-261812 260*185*128
M4-302110 300*210*100
M4-302110 300*210*130
M4-342309 340*235*95
M4-342312 340*235*120
M4-342313 340*235*135
M4-342316 340*235*160



 Water Resistant Aluminum Project Enclosure Hole Cutting Easy Operation 0Water Resistant Aluminum Project Enclosure Hole Cutting Easy Operation 1
1.The metal emergency stop button enclosure is made of high quality aluminum alloy, and the surface is high speed polished and then sprayed.
2.It is equipped with sealed rubber strip, making the enclosure dustproof, waterproof, anti-aging and partly anti-corrosion.
3. With good outlook, the normal color is gray, RAL-7032. The color can be customized according to the customer's requirements, such as white, yellow and black. Customized logo could be added on the enclosure.
4.According to customer requirements, we could make holes such as ordinary round holes, holes with silk tapping, square holes. Various button switches, indicator lights and waterproof connectors can be installed.Button can be equipped with a protective cover to prevent damage to the button caused by rain, dust, etc. The thread could go through the waterproof cable gland thus keeping the enclosure well sealed.
5. There’s mounting studs at the bottom, easy to install various accessories, such as guide rail, terminal, etc.
6 Mounting plate available when customer requires.
7 Installation:

  • The enclosure can be directly fixed on the wall or other flat boards with screws or or nails via the screw hols in the base.
  • The enclosure can be fixed by mounting brackets.


♦OEM is available: Material,size and other requirements are customized.
♦How to order our product ?
1.Please tell us the model, QTY, and more detail
2.PI supply for you
3.Confirm the payment & Arrange the delivery
♦High quality after-sale service :
1.Two years warranty
2.Track the order until you get the goods
3.Choose the shipping company according to customer's requirements
4.We will replace the broken parts with new parts in your next order
5.Solve the problem with you during using our products
♦Shipment: DHL/FedEx/UPS/SF EXPRESS and China Post, China Small Package and so on.
♦Payment: For sample, it's better via Paypal or Western Union, for bulk order, we can go for T/T, L/C.
We accept 30% payment in advance, the balance payment before shipment.
