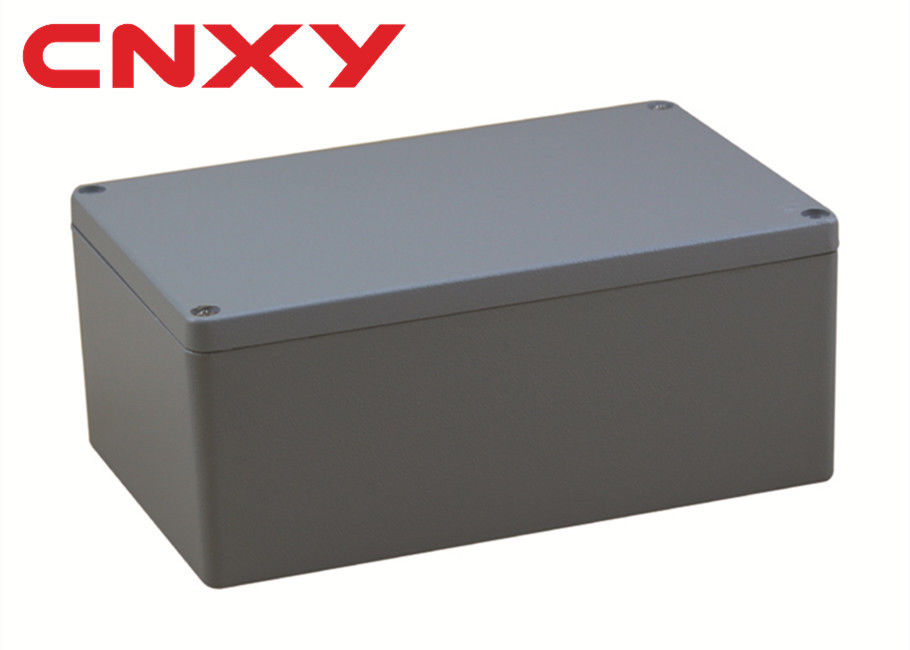

Water Resistant Aluminium Junction Box -20 To 120 °C Temperature Range

Water Resistant Aluminium Junction Box -20 To 120 °C Temperature Range

  • Water Resistant Aluminium Junction Box -20 To 120 °C Temperature Range
Water Resistant Aluminium Junction Box -20 To 120 °C Temperature Range
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M4-181208
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: Aluminum IP Grate: IP65
Color: RAL-7032 Size: 188*120*80mm
OEM: Yes Sealing: Formed Sealing Ring, Need Inserting By Hand
High Light:

aluminum enclosure box


aluminium terminal box

Water Resistant Aluminium Junction Box -20 To 120 °C Temperature Range

Our Enclosures are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets.They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ( protect instruments even under the adverse environment).


Workplace:In the bad industrial environment to the electrical and electronic control unit or various prevent natural disasters equipment
Feature:waterproof,dust-free,shock resistance,and rustproof,long lifetime,good insulating property,easy machining.
Temperature range:-20°C~120°C

Implement standard:EN60529 IP 65
Protection grade:UL94HB-V2

Full range of sizes available.

Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.

Sizes available.

Model Size
M4-060503 64*58*35
M4-120805 120*80*55
M4-120805-2 120*80*55
M4-130805 135*85*56
M4-120805-3 125*80*58
M4-181207 188*120*78
M4-181207-2 188*120*78
M4-100605 100*68*50
M4-221405 222*145*55
M4-221405-2 222*145*55
M4-221407 222*145*75
M4-221408 222*145*80
M4-110603 111*64*37
M4-181405 180*140*55
M4-090303 90*36*31
M4-221507 228*150*75
M4-201307 200*130*78
M4-181308 185*135*85
M4-221509 220*155*95
M4-251808 250*185*88
M4-251909 250*190*90
M4-080706 80*75*60
M4-170805 175*80*56
M4-170808 175*80*80
M4-250806 250*80*60
M4-250808 250*80*80
M4-110605 115*65*55
M4-161006 160*100*60
M4-151008 150*100*80
M4-110905 115*90*58
M4-110906 115*90*60
M4-251208 250*120*82
M4-321209 320*120*90
M4-361609 360*160*95
M4-101006 100*100*60
M4-141407 140*140*75
M4-141004 145*100*45
M4-121208 120*120*82
M4-161607 160*160*70
M4-161609 160*160*90
M4-161608 160*160*86
M4-241607 240*160*75
M4-241610 240*160*100
M4-261807 265*185*75
M4-261809 260*185*96
M4-261812 260*185*128
M4-302110 300*210*100
M4-302110 300*210*130
M4-342309 340*235*95
M4-342312 340*235*120
M4-342313 340*235*135
M4-342316 340*235*160




Water Resistant Aluminium Junction Box -20 To 120 °C Temperature Range 0

Screw holes with barrel,in case of sliding for frequent use

Sealing ways: 1 ordinary hand-insert the formed sealing rope

                       2 CNC machine sealing, convenient and not affected by the weather.

The mounting holes at the bottom with screw thread, easy to install mounting plate, din rail, pcb boards and so on.

Accessories: 4 screws, a sealing rope, (brackets available)



1.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)

2.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small

Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.

3.High quality waterproof box series could paint different colors, corresponding back plate available.

Our service:

♦OEM is available: Material,size and other requirements are customized.

♦How to order our product ? 1590B Pedal Enclosure Aluminum Box

1.Please tell us the model, QTY, and more detail

2.PI supply for you

3.Confirm the payment & Arrange the delivery

♦High quality after-sale service : 1590B Pedal Enclosure Aluminum Box

1.Two years warranty

2.Track the order until you get the goods

3.Choose the shipping company according to customer's requirements

4.We will replace the broken parts with new parts in your next order

5.Solve the problem with you during using our products

♦Shipment: DHL/FedEx/UPS/SF EXPRESS and China Post, China Small Package and so on.

♦Payment: For sample, it's better via Paypal or Western Union, for bulk order, we can go for T/T, L/C.

We accept 30% payment in advance, the balance payment before shipment.
