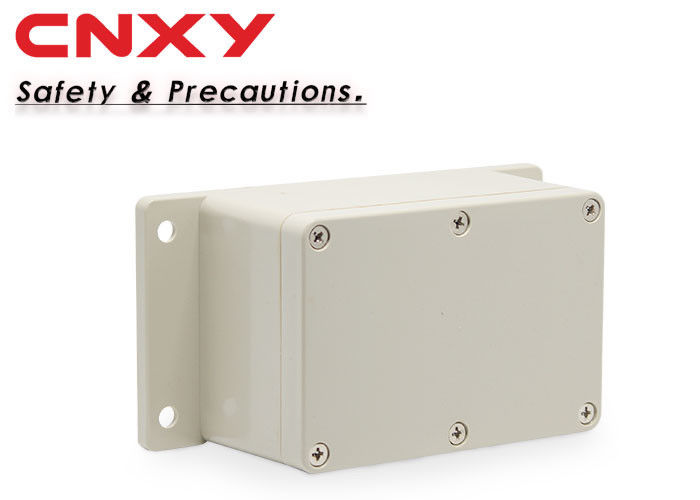

Universal Electronic Project Enclosure Water Resistant With Mounting Holes
Fixed ear plastic waterproof box adopts quality ABS engineering plastic or polycarbonate (PC) material,suitable for electrical and electronic control equipment ,shipbuilding ,petrochemical industry ,large factories, coastal factories ,terminal water treatment facilities ,all kinds of natural disaster prevention equipment in harsh industrial environment.product adopt plastic bolt design,prevent loss effectively.1/4 weight of metal box ,impact resistance ,corrosion resistance,long life ,good insulation performance ,easy processing.
Workplace:In the bad industrial environment to the electrical and electronic control unit or various prevent natural disasters equipment
Feature:waterproof,dust-free,shock resistance,and rustproof,long lifetime,good insulating property,easy machining.
Temperature range:-20°C~120°C
Implement standard:EN60529 IP 65
Protection grade:UL94HB-V2
Transparent cover and nontransparent cover optional.
Full range of sizes available.
Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.
Sizes available.
| Model |
Dimension |
| M2-060503G |
64*58*35 |
| M2-060503T |
| M2-080503G |
83*58*33 |
| M2-080503T |
| M2-100604G |
100*68*40 |
| M2-100604T |
| M2-100605G |
100*68*50 |
| M2-100605T |
| M2-110803G |
115*85*35 |
| M2-110803T |
| M2-110905G |
115*90*55 |
| M2-110905T |
| M2-110906G |
115*90*68 |
| M2-110906T |
| M2-121005G |
125*100*52 |
| M2-120806G |
120*81*65 |
| M2-120806T |
| M2-150904G |
158*90*46 |
| M2-150904T |
| M2-150906G |
158*90*64 |
| M2-150906T |
| M2-161609G |
160*160*90 |
| M2-161609T |
| M2-201207G |
200*120*75 |
| M2-201207T |
| M2-231508G |
230*150*87 |
| M2-231508T |
We also produce other type of boxes, hinged ones, lockable ones, aluminum ones and so on.
Details:
With mounting flanges, easier to install indoor and outdoor.
Accessories: formed sealing rope, steel screws. ( Stainless steel screws are available)
Sealing ways: 1 ordinary hand-insert the formed sealing rope
2 CNC machine sealing, convenient and not affected by the weather.
With mounting holes, convinent to install the electrical components.
Mounting flange on the box, easier for installation.
Application:
Fixed ear plastic waterproofroof box adopts quality ABS engineering plastic or polycarbonate (PC) material,wuitable for electrical and electronic control equipment ,shipbuilding ,petrochemical industry ,large factories, conastal factories ,terminal water treatment facilities ,all kinds of natural disaster prevention equipmne in harsh industrial environment.product adopt plastic bolt design,prevent loss effectively.1/4 weight of metal box ,impact resistance ,corrosion resistance,long life ,good insulation performance ,easy processing.
