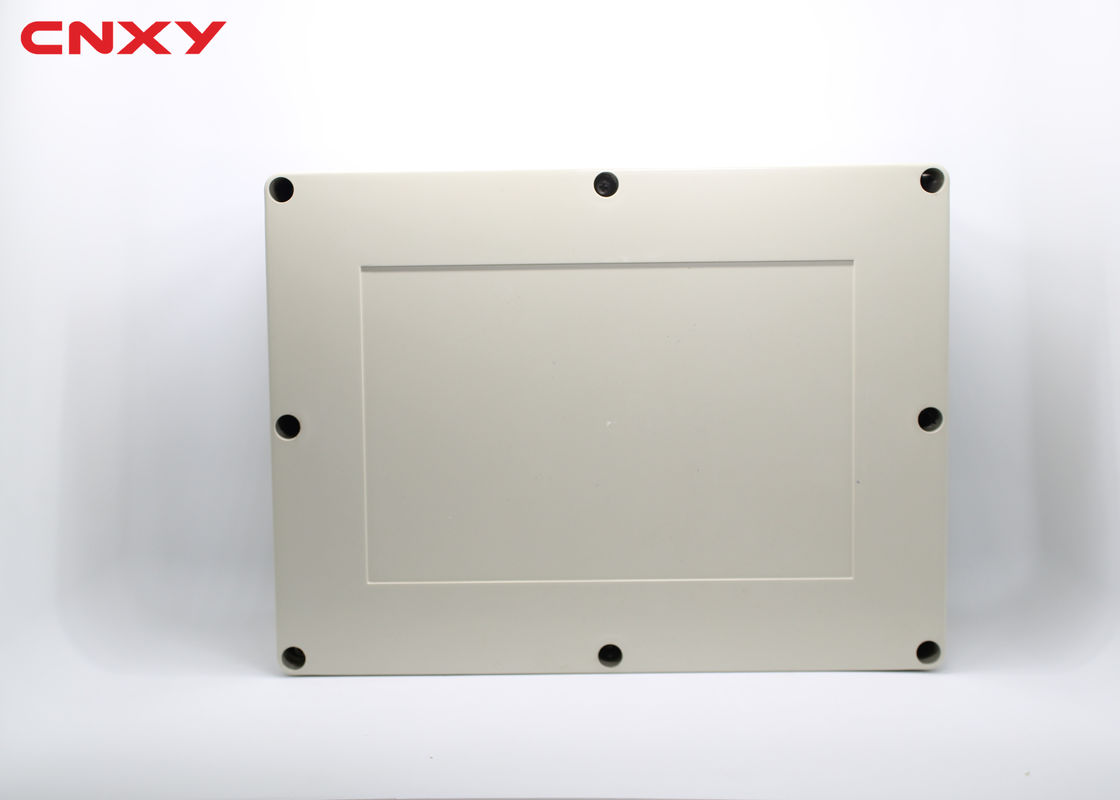

Shock Resistance Plastic Junction Box IK08 -40 To 120 °C Fit Fire Equipment

Shock Resistance Plastic Junction Box IK08 -40 To 120 °C Fit Fire Equipment

  • Shock Resistance Plastic Junction Box IK08 -40 To 120 °C Fit Fire Equipment
Shock Resistance Plastic Junction Box IK08 -40 To 120 °C Fit Fire Equipment
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M1-322415G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS, Other Material Customizable IP Grate: IP65
Color: Grey Size: 320*240*155mm
OEM: Hole Drilling, Color, Logo Printing And So On Weight: 1.3kg
High Light:

plastic electrical boxes


industrial junction box

Shock Resistance Plastic Junction Box IK08 -40 To 120 °C Fit Fire Equipment

This junction box is mainly used for indoor and outdoor electrical, communications, fire fighting equipment, iron and steel smelting, petrochemical, electronics, electricity, railways, construction sites, mines, mining, airports, hotels, ships, large factories, coastal factories unloading dock equipment, sewage and waste treatment facilities, environmental hazards facilities, etc.

Item Junction box
Material ABS
Function Waterproof
Protection Class IP65
Shock Resistance IK08
Operating Temperature -40°C~120°C
Color Light Grey or according your requirement
Function Airtight,waterproof,dustproof,

1. Indoor and outdoor installations

2. rapid Deployment Installations

3. corrosive environments & hotspot

Packing Plastic film and carton box
Payment terms T/T,L/C,Western Union,MoneyGram Union

Size available

Model Dimension(mm) Quantity/ctn
M1-060503G 64*58*35 560
M1-080503G 83*58*33 480
M1-080805G 83*81*56 216
M1-100605G 100*68*50 280
M1-110905G 115*90*55 162
M1-121209G 120*120*90 99
M1-150904G 158*90*40 165
M1-150906G 158*90*60 102
M1-160405G 160*45*55
M1-161109G 160*110*90 42
M1-161609G 160*160*90 33
M1-201205G 200*120*56 58
M1-201207G 200*120*75 80
M1-201211G 200*120*113 45
M1-231507G 230*150*87 36
M1-241609G 240*160*90 23
M1-241612G 240*160*120 28
M1-261806G 263*182*60 46
M1-261809G 263*182*95 21
M1-261812G 263*182*125 22
M1-281913G 280*195*135 18
M1-302814G 300*280*140 8
M1-322411G 320*240*110 14
M1-322414G 320*240*140 12
M1-322415G 320*240*155 10
M1-382610G 380*260*105 12
M1-382612G 380*260*120 12
M1-382614G 380*260*140 10


Sealing ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion, making much better waterproof and longer lifetime.
Multiple install method:
1Fix the boxes to the designated location directly through the screws.
2Install hangers, make it flexible and convenient to install on the places needed.

OEM service:

Material: ABS, PC, UL,flame resistent
Color: Grey, orange, green, black, and so on. Transparent lid type available.
Hole drilling: round, rectangle, square,
Mounting plate, inner door for some some series.
Electronic components fixing such as cable glands, pcb, terminal.


1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for


Q:Are you a factory or trading company?

A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?

A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?

A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
