Place of Origin: | China |
Brand Name: | CNXY |
Certification: | CE, RoHS |
Model Number: | M1-060503G |
Minimum Order Quantity: | 10 |
---|---|
Packaging Details: | common carton |
Delivery Time: | samples 2-3 working days, large quantity 7-20 working days |
Payment Terms: | T/T, Western Union, paypal |
Supply Ability: | 1000pcs per week |
Material: | Abs/ Pc | IP Grate: | IP65 |
---|---|---|---|
Color: | Grey | Model: | M1-060503G |
Size: | 64*58*35mm | OEM: | Yes |
Highlight: | industrial junction box,plastic connection box |

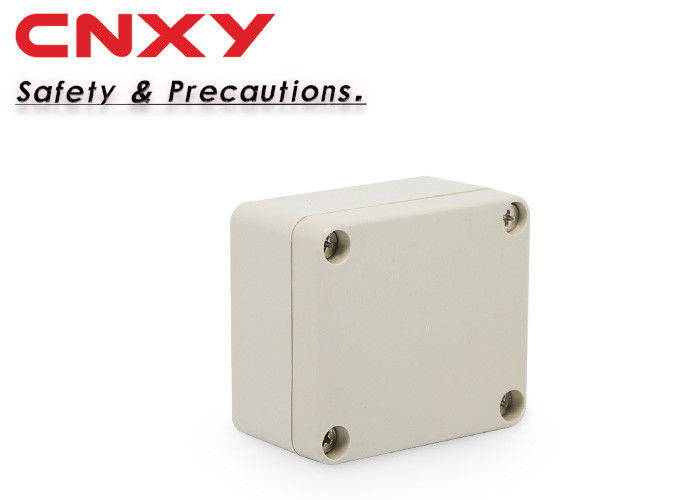

1. Material: ABS, custom: PC, ul, flame resistent
2. Size:64*58*35mm
3. Certificate:CE ROHS
4. 1 year warranty.
5.More than 10 years manufacturer.
6. Color : grey
Sizes available.
Model | Dimension(mm) | Quantity/ctn |
M1-060503G | 64*58*35 | 560 |
M1-060503T | ||
M1-080503G | 83*58*33 | 480 |
M1-080503T | ||
M1-080805G | 83*81*56 | 216 |
M1-080805T | ||
M1-100605G | 100*68*50 | 280 |
M1-100605T | ||
M1-110905G | 115*90*55 | 162 |
M1-110905T | ||
M1-121209G | 120*120*90 | 99 |
M1-121209T | ||
M1-150904G | 158*90*40 | 165 |
M1-150906G | 158*90*60 | 102 |
M1-150906T | ||
M1-160405G | 160*45*55 | |
M1-161109G | 160*110*90 | 42 |
M1-161109T | ||
M1-161609G | 160*160*90 | 33 |
M1-161609T | ||
M1-201205G | 200*120*56 | 58 |
M1-201205T | ||
M1-201207G | 200*120*75 | 80 |
M1-201207T | ||
M1-201211G | 200*120*113 | 45 |
M1-201211T | ||
M1-231507G | 230*150*87 | 36 |
M1-231507T | ||
M1-241609G | 240*160*90 | 23 |
M1-241609T | ||
M1-241612G | 240*160*120 | 28 |
M1-241612T | ||
M1-261806G | 263*182*60 | 46 |
M1-261806T | ||
M1-261809G | 263*182*95 | 21 |
M1-261809T | ||
M1-261812G | 263*182*125 | 22 |
M1-261812T | ||
M1-281913G | 280*195*135 | 18 |
M1-302814G | 300*280*140 | 8 |
M1-322411G | 320*240*110 | 14 |
M1-322411T | ||
M1-322414G | 320*240*140 | 12 |
M1-322414T | ||
M1-322415G | 320*240*155 | 10 |
M1-382610G | 380*260*105 | 12 |
M1-382612G | 380*260*120 | 12 |
M1-382614G | 380*260*140 | 10 |
Details:
Accessories: formed sealing rope, steel screws. ( Stainless steel screws are available)
Sealing ways: 1 ordinary hand-insert the formed sealing rope
2 CNC machine sealing, convenient and not affected by the weather.
With mounting holes, convinent to install the electrical components.
Advantages:
1). Gland connected for wire through.
2). Any shape hole could be drilled by laser cutter.
3). Silk screen could be done.Show your company logo and name.
4). Mounting plate for installing other electronic enclosure.
5). New mould for your customized design is acceptable.
Application:
It is convenient for the general &mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.
Feature: Waterproof, dust-proof, high-strength insulation. Any opening is available according to the customers’ demands, it is very complete in specification and convenient in installation.
