Place of Origin: | China |
Brand Name: | CNXY |
Certification: | CE, RoHS |
Model Number: | M3-121207T |
Minimum Order Quantity: | 10 |
---|---|
Packaging Details: | common carton |
Delivery Time: | samples 2-3 working days, large quantity 7-20 working days |
Payment Terms: | T/T, Western Union, paypal |
Supply Ability: | 1000pcs per week |
Material: | ABS Body, PC Lid | IP Grate: | IP67 |
---|---|---|---|
Color: | Grey | Model: | M3-121207T |
Size: | 125*125*75mm | OEM: | Yes |
High Light: | weatherproof connection box,watertight junction box |

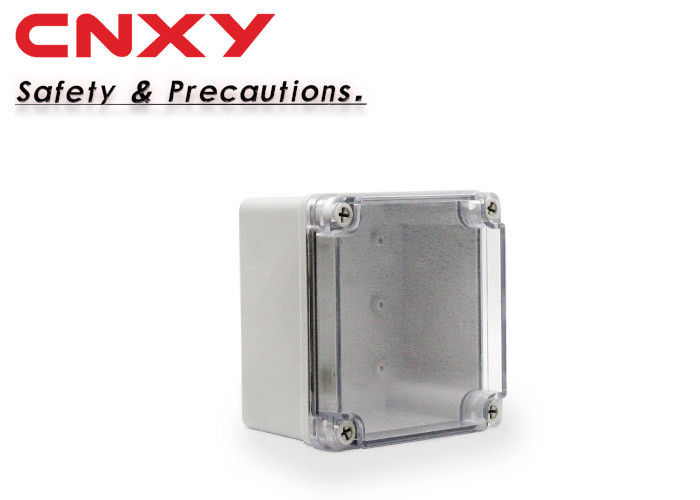

Plastic IP67 clear lid waterproof junction box 125*125*75mm with machine sealing
Our Enclosures are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets. They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ( protect instruments even under the adverse environment).
Material: ABS, accepet PC customization
Protection rank up to IP 67.
Color:RAL-7032
Dimension: 125*125*75mm
Working temperature: -20 ℃ to 120 ℃.
Cover: Transparent PC cover.
OEM: Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.
Sizes available.
Model | Dimension (mm) | Mounting plate | Cartin size (cm) |
Quantity (pcs/ctn) |
M3-060505 | 65*50*55 | not available | 52×40×57 | 600 |
M3-090605 | 95*65*55 | built-in | 70×53×30 | 280 |
M3-090605T | ||||
M3-101007 | 100*100*75 | not available | 70×53×30 | 135 |
M3-101007T | ||||
M3-110804 | 110*80*45 | available | 68×52×25 | 190 |
M3-110804T | ||||
M3-110807 | 110*80*70 | 70×53×30 | 156 | |
M3-110807T | ||||
M3-110808 | 110*80*85 | 68×52×25 | 108 | |
M3-110808T | ||||
M3-130807 | 130*80*70 | 68×52×25 | 108 | |
M3-130807T | ||||
M3-130808 | 130*80*85 | 68×52×25 | 90 | |
M3-130808T | ||||
M3-180807 | 180*80*70 | 68×52×25 | 74 | |
M3-180807T | ||||
M3-250807 | 250*80*70 | 68×52×25 | 54 | |
M3-250807T | ||||
M3-250808 | 250*80*85 | 68×52×25 | 48 | |
M3-250808T | ||||
M3-121207 | 125*125*75 | 68×52×25 | 72 | |
M3-121207T | ||||
M3-121210 | 125*125*100 | 68×52×25 | 50 | |
M3-121210T | ||||
M3-171207 | 175*125*75 | 70×53×30 | 54 | |
M3-171210 | 175*125*100 | 60×40×65 | 60 | |
M3-171409 | 170*140*95 | 70×53×30 | 45 | |
M3-171409T | ||||
M3-171710 | 175*175*100 | 70×53×30 | 32 | |
M3-201507 | 200*150*75 | 60×40×65 | 60 | |
M3-201507T | ||||
M3-201510 | 200*150*100 | 60×40×65 | 48 | |
M3-201510T | ||||
M3-201513 | 200*150*130 | 68×47×42 | 30 | |
M3-251510 | 250*150*100 | 70×53×30 | 28 | |
M3-251510T | ||||
M3-251513 | 250*150*130 | 68×47×52 | 30 | |
M3-251513T | ||||
M3-202009 | 200*200*95 | 60×40×65 | 36 | |
M3-202009T | ||||
M3-202013 | 200*200*130 | 60×40×65 | 30 | |
M3-202013T | ||||
M3-281913 | 280*190*130 | 68×40×58 | 20 | |
M3-281913T |
Advantage:
1.100% ABS, none recycled material
2.High waterproof: IP67
3.Plastic screw: not easy to rust, fall-out prevented
4.Machine formed gasket, no need to insert gasket by hands
5. With copper nut inside mounting stud, easier for installation.
Details:
Application:
It is convenient for the general &mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.
Feature: Waterproof, dust-proof, high-strength insulation. Any opening is available according to the customers’ demands, it is very complete in specification and convenient in installation.
