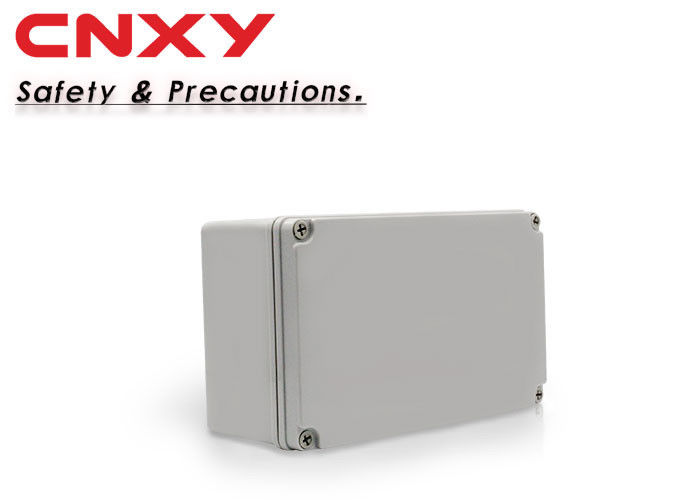

Outdoor Electrical Waterproof Junction Box IP67 250*150*100 Millimeter

Outdoor Electrical Waterproof Junction Box IP67 250*150*100 Millimeter

  • Outdoor Electrical Waterproof Junction Box IP67 250*150*100 Millimeter
Outdoor Electrical Waterproof Junction Box IP67 250*150*100 Millimeter
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M3-251510G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS Material Could Be Customized IP Grate: IP67
Color: Grey Size: 250*150*100mm
OEM: Yes Weight: 0.55kg
High Light:

waterproof electrical junction box


watertight junction box

Outdoor Electrical Waterproof Junction Box IP67 250*150*100 Millimeter


Body material:ABS/PC

Material characteristics: Impact,heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.

Certificates: CE, RoHS

Protection grade: IP67

Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port,hotel,ship,works,waste water treatment equipment, environmental equipment and so on.


  • Inside: there are installation holes in the base for circuit board or din rail( more than 2 pcs of M4 brass nuts have been in each box)
  • Outside: the products can be directly fixed on the wall or other flat boards with screw or nails via the screw holes in the base.

Outlet hole: Holes can be opened on the box as customers’ requirements, and installing cable gland can bring with better waterproof performance

Sizes available

Model Dimension(mm)
M3-060505 65*50*55
M3-090605 95*65*55
M3-101007 100*100*75
M3-110804 110*80*45
M3-110807 110*80*70
M3-110808 110*80*85
M3-130807 130*80*70
M3-130808 130*80*85
M3-180807 180*80*70
M3-250807 250*80*70
M3-250808 250*80*85
M3-121207 125*125*75
M3-121210 125*125*100
M3-171207 175*125*75
M3-171210 175*125*100
M3-171409 170*140*95
M3-171710 175*175*100
M3-201507 200*150*75
M3-201510 200*150*100
M3-201513 200*150*130
M3-251510 250*150*100
M3-251513 250*150*130
M3-202009 200*200*95
M3-202013 200*200*130
M3-281913 280*190*130



Outdoor Electrical Waterproof Junction Box IP67 250*150*100 Millimeter 0Outdoor Electrical Waterproof Junction Box IP67 250*150*100 Millimeter 1


Injection molding ABS enclosure, made from new imported material, built in rib reinforcement, which is well designed, anti distortion, waterproof, dust-proof, and insulated, with longer service life.


Adopt German imported foaming machine, the foamed sealing ring form together with the enclosure body. Has the feature of high waterproof dust-proof and tightness.

3Wiring Pole

Enclosure has at least two or more copper nut, easy for users to install circuit board, din rail and bottom board. It can be repeated dis-assembly, avoiding the self-tapping screws slide wire problems.(Enclosure comes with two matching M4screws)


Adopt imported reinforced PC injection plastic molding, the anti-screw has the feature of high strength, insulation, corrosion resistance, easy to install. It solve the problem of screws falling when using.

OEM service

Material: ABS, PC, UL,flame resistant

Color: Grey, orange, green, black, and so on. Transparent lid type available.

Hole drilling: round, rectangle, square,

Mounting plate, inner door for some some series.

Electronic components fixing such as cable glands, pcb, terminal.

Outdoor Electrical Waterproof Junction Box IP67 250*150*100 Millimeter 2


1.Q:How can I get the samples?

A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.


2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.


3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.


4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.


5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
