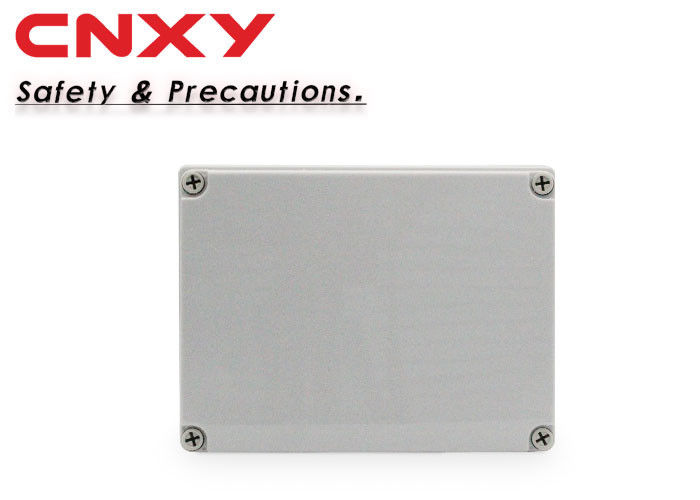

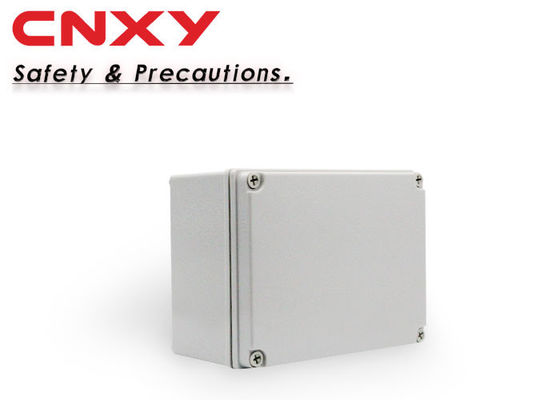

High Insulation Waterproof Junction Box M3 201510G For Petrochemical Industry
High-end type plastic waterproof box adopts high quality ABS engineering plastics or polycarbonate(PC)material, suitable for electrical and electronic control equipment, shipbuilding, petrochemical industry, large factories, coastal factories, terminal water treatment facilities, all kinds of natural disaster prevention equipment in harsh industrial environment. Product adopt plastic bolt design, prevent loss effectively.1/4 weight of metal box, impact resistance, corrosion resistance, long life, good insulation performance, easy processing.
Sizes available
| Model |
Dimension(mm) |
| M3-060505 |
65*50*55 |
| M3-090605 |
95*65*55 |
| M3-090605T |
| M3-101007 |
100*100*75 |
| M3-101007T |
| M3-110804 |
110*80*45 |
| M3-110804T |
| M3-110807 |
110*80*70 |
| M3-110807T |
| M3-110808 |
110*80*85 |
| M3-110808T |
| M3-130807 |
130*80*70 |
| M3-130807T |
| M3-130808 |
130*80*85 |
| M3-130808T |
| M3-180807 |
180*80*70 |
| M3-180807T |
| M3-250807 |
250*80*70 |
| M3-250807T |
| M3-250808 |
250*80*85 |
| M3-250808T |
| M3-121207 |
125*125*75 |
| M3-121207T |
| M3-121210 |
125*125*100 |
| M3-121210T |
| M3-171207 |
175*125*75 |
| M3-171210 |
175*125*100 |
| M3-171409 |
170*140*95 |
| M3-171409T |
| M3-171710 |
175*175*100 |
| M3-201507 |
200*150*75 |
| M3-201507T |
| M3-201510 |
200*150*100 |
| M3-201510T |
| M3-201513 |
200*150*130 |
| M3-251510 |
250*150*100 |
| M3-251510T |
| M3-251513 |
250*150*130 |
| M3-251513T |
| M3-202009 |
200*200*95 |
| M3-202009T |
| M3-202013 |
200*200*130 |
| M3-202013T |
| M3-281913 |
280*190*130 |
| M3-281913T |
1Appearance
Injection molding ABS enclosure, made from new imported material, built in rib reinforcement, which is well designed, anti distortion, waterproof, dust-proof, and insulated, with longer service life.
2Sealingring
Adopt German imported foaming machine, the foamed sealing ring form together with the enclosure body. Has the feature of high waterproof dust-proof and tightness.
3Wiring Pole
Enclosure has at least two or more copper nut, easy for users to install circuit board, din rail and bottom board. It can be repeated dis-assembly, avoiding the self-tapping screws slide wire problems.(Enclosure comes with two matching M4screws)
4Screw
Adopt imported reinforced PC injection plastic molding, the anti-screw has the feature of high strength, insulation, corrosion resistance, easy to install. It solve the problem of screws falling when using.
5Installation
Two types of installation
1Through the screw holes on the back of enclosure, using self-tapping screws mounted enclosure on the wall.
2Reserved mounting hole, back on the enclosure, can e equipped with hanging corner, fixed mounted enclosure on the wall.
OEM service
Material: ABS, PC, UL,flame resistant
Color: Grey, orange, green, black, and so on. Transparent lid type available.
Hole drilling: round, rectangle, square,
Mounting plate, inner door for some some series.
Electronic components fixing such as cable glands, pcb, terminal.
FAQ
1.Q:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.
2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.
3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.
4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.
5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
