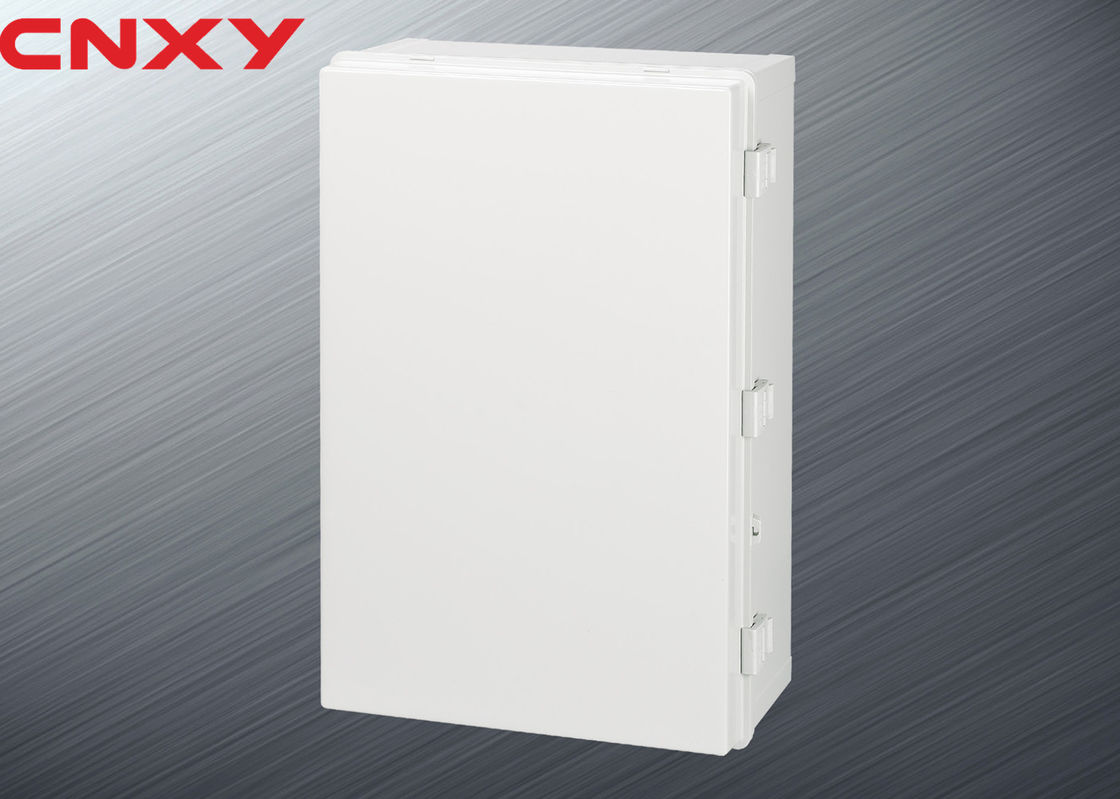

High Insulation Electrical Distribution Box Chemical Resistance RoHS Approved

High Insulation Electrical Distribution Box Chemical Resistance RoHS Approved

Model: M7-604022G

Range: Junction box, TERMINAL BOX, Measuring equipment box, Power distribution box

Color: Gray box body

Function : waterproof box, fireproof box

Outside Size: 300*200*170mm

Material: ABS/PC

1. The performance of the product:waterproof,fireproof, explosion-proof,acid-proof and alkali-proof,insulated,anti-collision etc.

2. The product has various fixing ways,which can be fixed with circuitry panel,DIN orbits,wall hanging hole and fixed bolts and so on. All above are outside the seal area.Also the material and color can be make as customer's request.

3. The inner door could be installed  in the middle of box to adjust the height up and down.

4. Each box could be equipped with mesh plate and four plastic feet.

Size available

Details:

1Appearance

Injection molding ABS enclosure, made from new imported material, built in rib reinforcement, which is well designed, anti distortion, waterproof, dust-proof, and insulated, with longer service life.

2Sealing ring

Adopt German imported foaming machine, the foamed sealing ring form together with the enclosure body. Has the feature of high waterproof dust-proof and tightness.

3Wiring Pole

Enclosure has at least two or more copper nut, easy for users to install circuit board, din rail and bottom board. It can be repeated dis-assembly, avoiding the self-tapping screws slide wire problems.(Enclosure comes with two matching M4screws)

4Hatch and hinge

With hatch and hinge to open and close, more convenient than installing screws.

OEM service

1.Any shape hole could be drilled by laser cutter . (Grand connected for wire through)
2.Silk-screen and Laser printing could be done. (Show your company logo and name)
3.Mounting place could be done. (Install other electronic enclosure)
4.The material and color of the products could be modified as required.
5.New mould for your customized design could be accepted.

Advantages

1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or

moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)

3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small

Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.

4.High quality waterproof box series, new imported materials, no recycled material. Good

strength. Can do transparent and opaque or PC material , with corresponding backplate for

choice.
