Place of Origin: | China |
Brand Name: | CNXY |
Certification: | CE, RoHS |
Model Number: | M4-121208 |
Minimum Order Quantity: | 10 |
---|---|
Packaging Details: | common carton |
Delivery Time: | samples 2-3 working days, large quantity 7-20 working days |
Payment Terms: | T/T, Western Union, paypal |
Supply Ability: | 1000pcs per week |
Material: | Aluminum | IP Grate: | IP66 |
---|---|---|---|

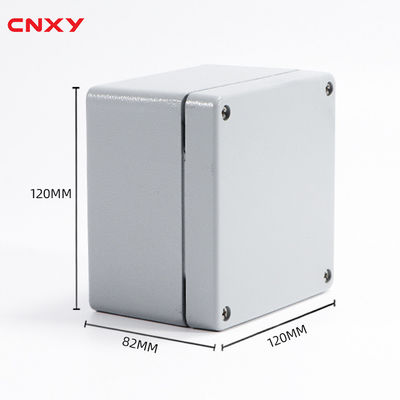

Color: | RAL-7032 | Size: | 120*120*82mm |
OEM: | Yes | Sealing: | Formed Sealing Ring, Need Inserting By Hand |
High Light: | aluminum enclosure box,aluminium terminal box |
Our aluminum enclosure are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets. They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ,protect instruments even under the adverse environment.
Designed for water-proof and dust-proof, IP 67
Applied for the circumstances:subzero 40centigrade to 120centigrade
Corrosion resistant
Standard item no holes, we can make holes if the customer provide drawing for hole
dimensions and locations
Model | Size |
M4-060503 | 64*58*35 |
M4-120805 | 120*80*55 |
M4-120805-2 | 120*80*55 |
M4-130805 | 135*85*56 |
M4-120805-3 | 125*80*58 |
M4-181207 | 188*120*78 |
M4-181207-2 | 188*120*78 |
M4-100605 | 100*68*50 |
M4-221405 | 222*145*55 |
M4-221405-2 | 222*145*55 |
M4-221407 | 222*145*75 |
M4-221408 | 222*145*80 |
M4-110603 | 111*64*37 |
M4-181405 | 180*140*55 |
M4-090303 | 90*36*31 |
M4-221507 | 228*150*75 |
M4-201307 | 200*130*78 |
M4-181308 | 185*135*85 |
M4-221509 | 220*155*95 |
M4-251808 | 250*185*88 |
M4-251909 | 250*190*90 |
M4-080706 | 80*75*60 |
M4-170805 | 175*80*56 |
M4-170808 | 175*80*80 |
M4-250806 | 250*80*60 |
M4-250808 | 250*80*80 |
M4-110605 | 115*65*55 |
M4-161006 | 160*100*60 |
M4-151008 | 150*100*80 |
M4-110905 | 115*90*58 |
M4-110906 | 115*90*60 |
M4-251208 | 250*120*82 |
M4-321209 | 320*120*90 |
M4-361609 | 360*160*95 |
M4-101006 | 100*100*60 |
M4-141407 | 140*140*75 |
M4-141004 | 145*100*45 |
M4-121208 | 120*120*82 |
M4-161607 | 160*160*70 |
M4-161609 | 160*160*90 |
M4-161608 | 160*160*86 |
M4-241607 | 240*160*75 |
M4-241610 | 240*160*100 |
M4-261807 | 265*185*75 |
M4-261809 | 260*185*96 |
M4-261812 | 260*185*128 |
M4-302110 | 300*210*100 |
M4-302110 | 300*210*130 |
M4-342309 | 340*235*95 |
M4-342312 | 340*235*120 |
M4-342313 | 340*235*135 |
M4-342316 | 340*235*160 |

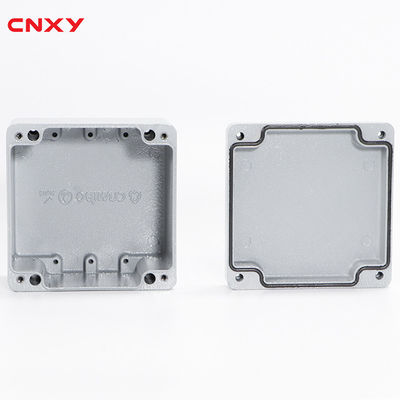

1Screw holes with barrel,in case of sliding for frequent use
2The mounting holes at the bottom with screw thread, easy to install mounting plate, din rail, pcb boards and so on.
3Mounting plate available according to customer’s requirement

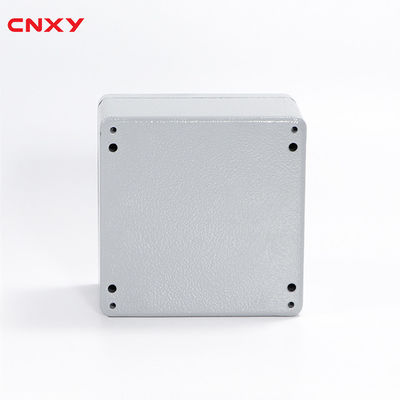

4The mounting holes at the back of box help the fixation with brackets, (some with screw thread, some without.)
1.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
2.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
3.High quality waterproof box series could paint different colors, corresponding back plate available.
It is widely used in various industries, for such equipment as halfway junction boxes, terminal boxes, miniature electromechanical instruments, communication contact boxes, etc, has advantages of reasonable price and easy operation.
The die-cast aluminum seal box is applicable for machineries, ships, automobiles, production lines and other equipment, suitable for petrochemical industry and other severe environment; it is featured with high impact resistance and good chemical resistance.
