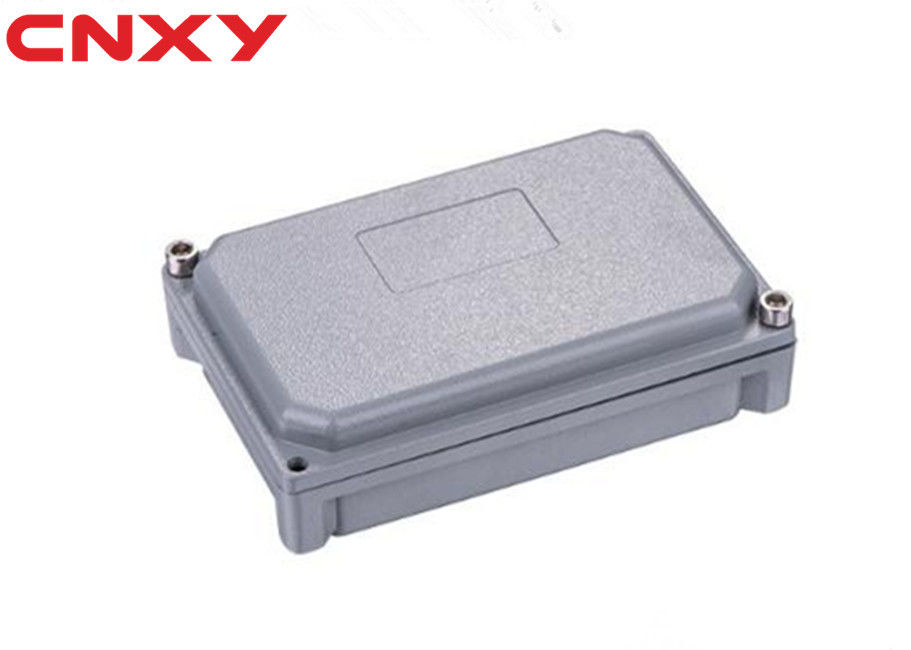

Hardness Small Connector Box , Aluminium Enclosures For Electronics

Hardness Small Connector Box , Aluminium Enclosures For Electronics

  • Hardness Small Connector Box , Aluminium Enclosures For Electronics
Hardness Small Connector Box , Aluminium Enclosures For Electronics
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M4-140904
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: Aluminum IP Grate: IP66
Color: RAL-7032 Size: 140*98*42mm
OEM: Yes Sealing: Formed Sealing Ring, Need Inserting By Hand
High Light:

aluminium junction box

,

aluminium terminal box

Hardness Small Connector Box , Aluminium Enclosures For Electronics

Our Enclosures are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets.They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ( protect instruments even under the adverse environment).
Material:aluminum
Workplace:In the bad industrial environment to the electrical and electronic control unit or various prevent natural disasters equipment
Feature:waterproof,dust-free,shock resistance,and rustproof,long lifetime,good insulating property,easy machining.
Temperature range:-20°C~120°C
Implement standard:EN60529 IP 65
Protection grade:UL94HB-V2
Full range of sizes available.
Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.

Sizes available.

ModelSize
M4-06050364*58*35
M4-120805120*80*55
M4-120805-2120*80*55
M4-130805135*85*56
M4-120805-3125*80*58
M4-181207188*120*78
M4-181207-2188*120*78
M4-100605100*68*50
M4-221405222*145*55
M4-221405-2222*145*55
M4-221407222*145*75
M4-221408222*145*80
M4-110603111*64*37
M4-181405180*140*55
M4-09030390*36*31
M4-221507228*150*75
M4-201307200*130*78
M4-181308185*135*85
M4-221509220*155*95
M4-251808250*185*88
M4-251909250*190*90
M4-08070680*75*60
M4-170805175*80*56
M4-170808175*80*80
M4-250806250*80*60
M4-250808250*80*80
M4-110605115*65*55
M4-161006160*100*60
M4-151008150*100*80
M4-110905115*90*58
M4-110906115*90*60
M4-251208250*120*82
M4-321209320*120*90
M4-361609360*160*95
M4-101006100*100*60
M4-141407140*140*75
M4-141004145*100*45
M4-121208120*120*82
M4-161607160*160*70
M4-161609160*160*90
M4-161608160*160*86
M4-241607240*160*75
M4-241610240*160*100
M4-261807265*185*75
M4-261809260*185*96
M4-261812260*185*128
M4-302110300*210*100
M4-302110300*210*130
M4-342309340*235*95
M4-342312340*235*120
M4-342313340*235*135
M4-342316340*235*160




























































Details:

Hardness Small Connector Box , Aluminium Enclosures For Electronics 0Hardness Small Connector Box , Aluminium Enclosures For Electronics 1
Screw holes with barrel,in case of sliding for frequent use
Hardness Small Connector Box , Aluminium Enclosures For Electronics 2

Sealing ways: 1 ordinary hand-insert the formed sealing rope
                       2 CNC machine sealing, convenient and not affected by the weather.
The mounting holes at the bottom with screw thread, easy to install mounting plate, din rail, pcb boards and so on.
Accessories: 4 screws, a sealing rope, (brackets available)


Application

It is widely used in various industries, for such equipment as halfway junction boxes, terminal boxes, miniature electromechanical instruments, communication contact boxes, etc, has advantages of reasonable price and easy operation.
The die-cast aluminum seal box is applicable for machineries, ships, automobiles, production lines and other equipment, suitable for petrochemical industry and other severe environment; it is featured with high impact resistance and good chemical resistance.

Our service:

♦OEM is available: Material,size and other requirements are customized.
♦How to order our product ? 1590B Pedal Enclosure Aluminum Box
1.Please tell us the model, QTY, and more detail
2.PI supply for you
3.Confirm the payment & Arrange the delivery
♦High quality after-sale service : 1590B Pedal Enclosure Aluminum Box
1.Two years warranty
2.Track the order until you get the goods
3.Choose the shipping company according to customer's requirements
4.We will replace the broken parts with new parts in your next order
5.Solve the problem with you during using our products
♦Shipment: DHL/FedEx/UPS/SF EXPRESS and China Post, China Small Package and so on.
♦Payment: For sample, it's better via Paypal or Western Union, for bulk order, we can go for T/T, L/C.
We accept 30% payment in advance, the balance payment before shipment.
