Place of Origin: | China |
Brand Name: | CNXY |
Certification: | CE. RoHS |
Model Number: | M7-504020G |
Minimum Order Quantity: | 10 pcs |
---|---|
Packaging Details: | common carton |
Delivery Time: | 3-8 working days after the payment |
Supply Ability: | 1000pcs per week |
Material: | ABS/PC | External Size: | 500*400*200mm |
---|---|---|---|
Protection Grade: | IP65 | Color: | Grey |
Material Characteristics: | Impact, Heat, Low Temperature And Chemical Resistance, Excellent Electrical Performance And Surface Gloss, Etc. | Opening Way: | Hinge And Hatch |
Highlight: | electrical power distribution box,cable distribution box |
Model | Dimension (mm) | Middle door, mounting plate available. | Middle door (mm) (Galvanized ) |
Mounting plate (mm) (Galvanized/plastic) |
Remark |
M7-302017G | 300*200*170 | 171*271*2 | 169*273*2 | 2 clasp | |
M7-302017T | |||||
M7-403017G | 400*300*170 | 271*371*2 | 269*372*2 | ||
M7-403017T | |||||

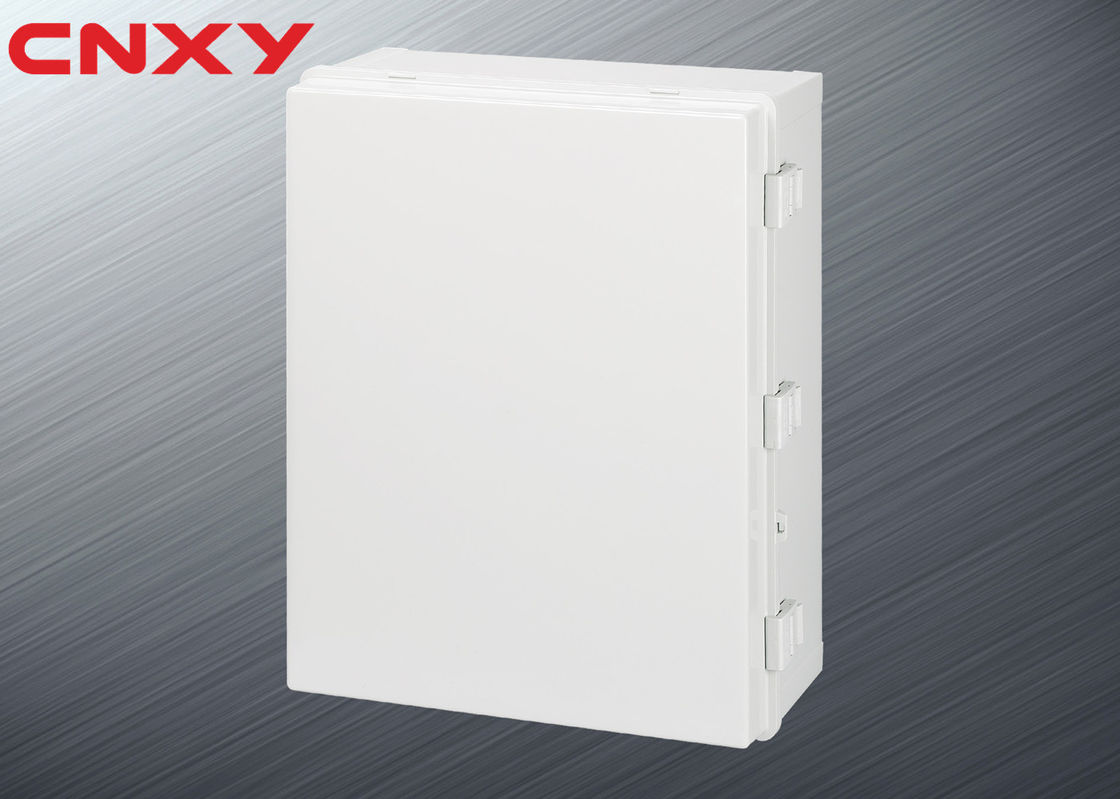

M7-504020G | 500*400*200 | 371*471*2 | 368*472*2 | 3 clasp | |
M7-504020T | |||||
M7-604022G | 600*400*220 | 371*571*2 | 368*572*2 | ||
M7-604022T | |||||
G for grey lid, T for transparent lid. |
1Appearance
Injection molding ABS enclosure, made from new imported material, built in rib reinforcement, which is well designed, anti distortion, waterproof, dust-proof, and insulated, with longer service life.
2Sealing ring
Adopt German imported foaming machine, the foamed sealing ring form together with the enclosure body. Has the feature of high waterproof dust-proof and tightness.
3Wiring Pole
Enclosure has at least two or more copper nut, easy for users to install circuit board, din rail and bottom board. It can be repeated dis-assembly, avoiding the self-tapping screws slide wire problems.(Enclosure comes with two matching M4screws)
4Hatch and hinge
With hatch and hinge to open and close, more convenient than installing screws.
1.Any shape hole could be drilled by laser cutter . (Grand connected for wire through)
2.Silk-screen and Laser printing could be done. (Show your company logo and name)
3.Mounting place could be done. (Install other electronic enclosure)
4.The material and color of the products could be modified as required.
5.New mould for your customized design could be accepted.
1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for
choice.
