Place of Origin: | China |
Brand Name: | CNXY |
Certification: | CE, RoHS |

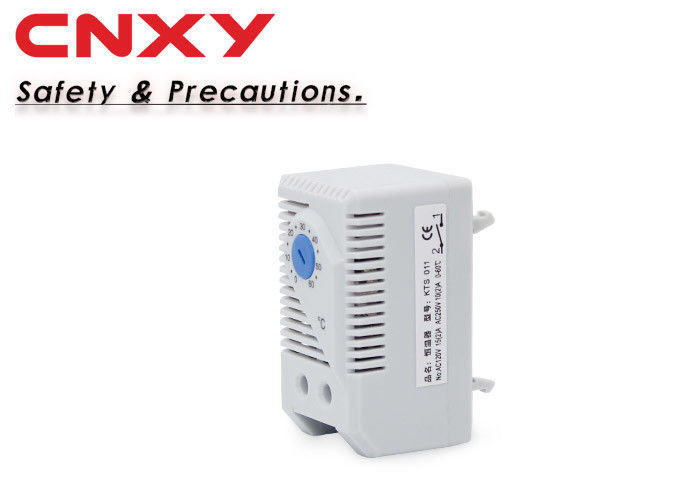

Model Number: | KTS-011 |
Minimum Order Quantity: | 10pcs |
---|---|
Packaging Details: | common carton |
Payment Terms: | T/T,Western Union, paypal |
Supply Ability: | 1000pcs per week |
Voltage: | AV120V 15(2)A, AC250V 10(2)A | Temperature: | 0-60℃ |
---|---|---|---|
Switch Tempearture: | 7K(±tolerance) | Contact Resistance: | <10mΩ |
Protection Type: | IP20 | Service Life: | >100000cycles |
Highlight: | thermostat controlled heater,din rail thermostat |
Temperature range: -4 to +176°F (-20 to +80°C)
Protection type: IP20
Contact type: snap-action contact
Mounting: clip for 35mm DIN rail, EN 60 715
(or for Exhaust Filter EF 118 Series)
Size: 2.4 x 1.3 x 1.7” (60 x 33 x 43mm)
Weight : 1.4 oz. (40g)
Function:normally open,contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Note: after seting the temperature, the control heater is normally closed, in the situation, when the actual temperature is lower than the set one, the circuit is always closed. If the temperature goes up near the set one, the heater would start to cool down.
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting way: 35mm DIN rail, EN60715 or for exit filter EF 118 series
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the samples?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.
