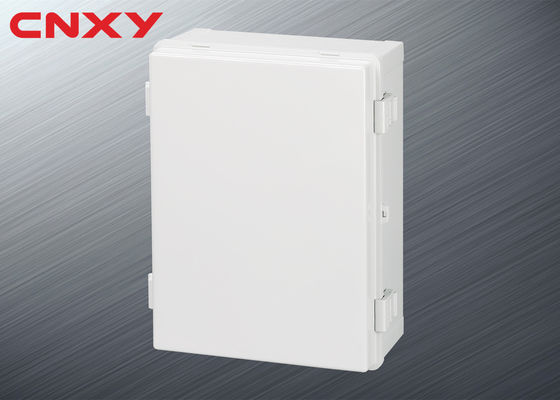

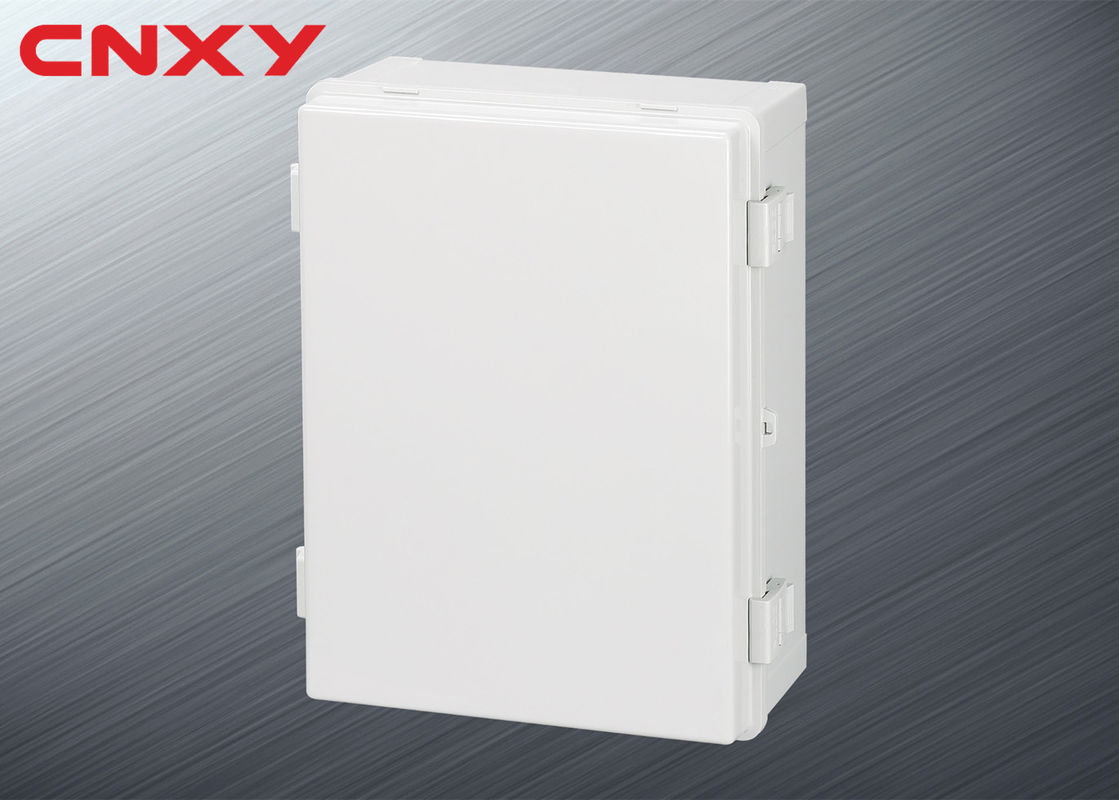

Dustproof Electrical Distribution Box , Cable Connection Box Easy Installation

Dustproof Electrical Distribution Box , Cable Connection Box Easy Installation

  • Dustproof Electrical Distribution Box , Cable Connection Box Easy Installation
Dustproof Electrical Distribution Box , Cable Connection Box Easy Installation
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE. RoHS
Model Number: M7-403017G
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: common carton
Delivery Time: 3-8 working days after the payment
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: PC External Size: 400*300*170mm
Protection Grade: IP65 Color: Grey
Material Characteristics: Impact, Heat, Low Temperature And Chemical Resistance, Excellent Electrical Performance And Surface Gloss, Etc. Opening Way: Hinge And Hatch
High Light:

electrical power distribution box


cable distribution box

Dustproof Electrical Distribution Box , Cable Connection Box Easy Installation

  • Protection level :IP65/IK08
  • Material: PC
  • Color:RAL-7032
  • Certification: CE, ROHS
  • Standard: IEC60529 IP65, EN60309
  • Application: It is convenient for the general &mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.
  • Feature: Waterproof, dust-proof, anti-corrosion, high-strength insulation. Any opening is available according to the customers’ demands, it is very complete in specification and convenient in installation.

Size available


Model Dimension (mm) Middle door, mounting plate available. Middle door (mm)
(Galvanized )
Mounting plate (mm)
M7-302017G 300*200*170 171*271*2 169*273*2 2 clasp
M7-403017G 400*300*170 271*371*2 269*372*2
M7-504020G 500*400*200 371*471*2 368*472*2 3 clasp
M7-604022G 600*400*220 371*571*2 368*572*2
G for grey lid, T for transparent lid.




Injection molding ABS enclosure, made from new imported material, built in rib reinforcement, which is well designed, anti distortion, waterproof, dust-proof, and insulated, with longer service life.

2Sealing ring

Adopt German imported foaming machine, the foamed sealing ring form together with the enclosure body. Has the feature of high waterproof dust-proof and tightness.

3Wiring Pole

Enclosure has at least two or more copper nut, easy for users to install circuit board, din rail and bottom board. It can be repeated dis-assembly, avoiding the self-tapping screws slide wire problems.(Enclosure comes with two matching M4screws)

4Hatch and hinge

With hatch and hinge to open and close, more convenient than installing screws.

OEM service

OEM service:

Material: ABS, PC, UL,flame resistant

Color: Grey, orange, green, black, and so on. Transparent lid type available.

Hole drilling: round, rectangle, square,

Mounting plate, inner door for some some series.

Electronic components fixing such as cable glands, pcb, terminal.


1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or

moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)

3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small

Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.

4.High quality waterproof box series, new imported materials, no recycled material. Good

strength. Can do transparent and opaque or PC material , with corresponding backplate for
