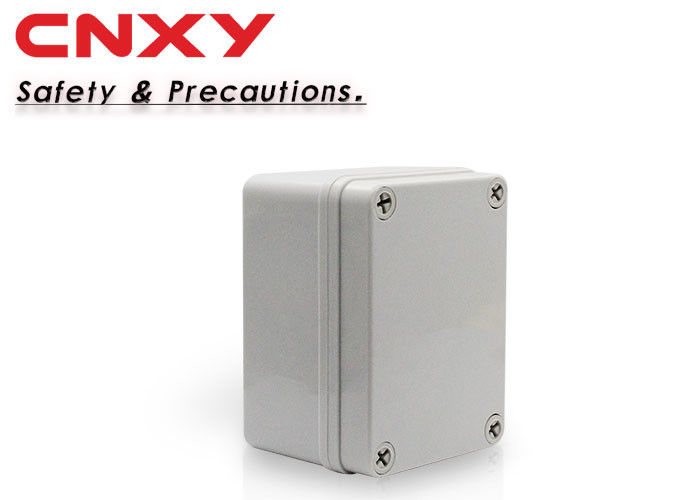

Durable Waterproof Junction Box , Plastic Electrical Boxes Easy Installation

Durable Waterproof Junction Box , Plastic Electrical Boxes Easy Installation

  • Durable Waterproof Junction Box , Plastic Electrical Boxes Easy Installation
Durable Waterproof Junction Box , Plastic Electrical Boxes Easy Installation
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M3-110807G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS, PC Material Could Customized IP Grate: IP67
Color: Grey Model: M3-110807G
Size: 110*80*70mm OEM: Yes
High Light:

weatherproof connection box

,

watertight junction box

Durable Waterproof Junction Box , Plastic Electrical Boxes Easy Installation



  1. It is made of ABS, with a good exterior,excellent processing performance and strength.
  2. The product weighs approximately 1/4 the weight of an iron boxand can be easily installed or moved. The product is free from corrosion. It carries superior insulation.
  3. As a conventional plastic box with certification such as CE,ROHS.
  4. The product has passed waterproof and dustproof carried out under rigid quality standards.(IP67)
  5. Temperature range:ABS,-20 to +70 degree;PC: -50 to +120 degree
  6. The use is also convenient for the installation of terminal substitution rail, button box, small terminal, signal, relay and sensor, communication and joint box etc.
  7. 7.We provideOEM service.

Sizes available.

Durable Waterproof Junction Box , Plastic Electrical Boxes Easy Installation 0



Model Dimension (mm) Mounting plate Cartin size
(cm)
Quantity
(pcs/ctn)
M3-060505 65*50*55 not available 52×40×57 600
M3-090605 95*65*55 built-in 70×53×30 280
M3-090605T
M3-101007 100*100*75 not available 70×53×30 135
M3-101007T
M3-110804 110*80*45 available 68×52×25 190
M3-110804T
M3-110807 110*80*70 70×53×30 156
M3-110807T
M3-110808 110*80*85 68×52×25 108
M3-110808T
M3-130807 130*80*70 68×52×25 108
M3-130807T
M3-130808 130*80*85 68×52×25 90
M3-130808T
M3-180807 180*80*70 68×52×25 74
M3-180807T
M3-250807 250*80*70 68×52×25 54
M3-250807T
M3-250808 250*80*85 68×52×25 48
M3-250808T
M3-121207 125*125*75 68×52×25 72
M3-121207T
M3-121210 125*125*100 68×52×25 50
M3-121210T
M3-171207 175*125*75 70×53×30 54
M3-171210 175*125*100 60×40×65 60
M3-171409 170*140*95 70×53×30 45
M3-171409T
M3-171710 175*175*100 70×53×30 32
M3-201507 200*150*75 60×40×65 60
M3-201507T
M3-201510 200*150*100 60×40×65 48
M3-201510T
M3-201513 200*150*130 68×47×42 30
M3-251510 250*150*100 70×53×30 28
M3-251510T
M3-251513 250*150*130 68×47×52 30
M3-251513T
M3-202009 200*200*95 60×40×65 36
M3-202009T
M3-202013 200*200*130 60×40×65 30
M3-202013T
M3-281913 280*190*130 68×40×58 20
M3-281913T








Durable Waterproof Junction Box , Plastic Electrical Boxes Easy Installation 1

  • Hole drilling: dirll hole according to customers' requirements.
  • Logo printing: laser printing, silk screen printing, labeling.



FAQ

1.Q:How can I get the samples?

A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.



2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.



3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.



4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.



5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
