|31#, Yinhe Road, Liushi Town, Yueqing, Wenzhou, Zhejiang, China 325604|
|Place of Origin:||China|
|Minimum Order Quantity:||10|
|Packaging Details:||common carton|
|Delivery Time:||samples 2-3 working day, large quantity more time|
|Supply Ability:||1000 pcs per week|
|Rated Insulation Voltage:||550V 50Hz/60Hz||Limit Current:||80A|
|Rated Current:||5A||Working Temperature:||-40~+60℃|
|Material:||PC||Color:||Transparent Cover, Black Bakelite Base|
bakelite terminal block,
brass terminal block

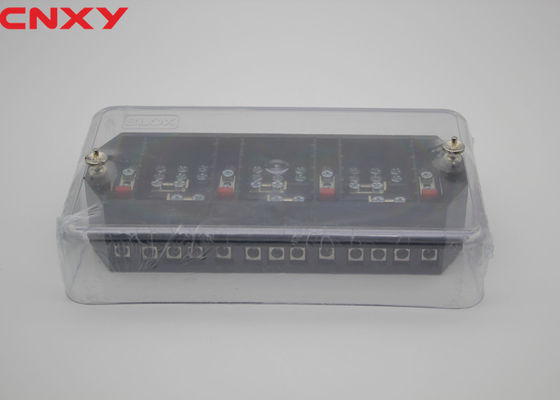

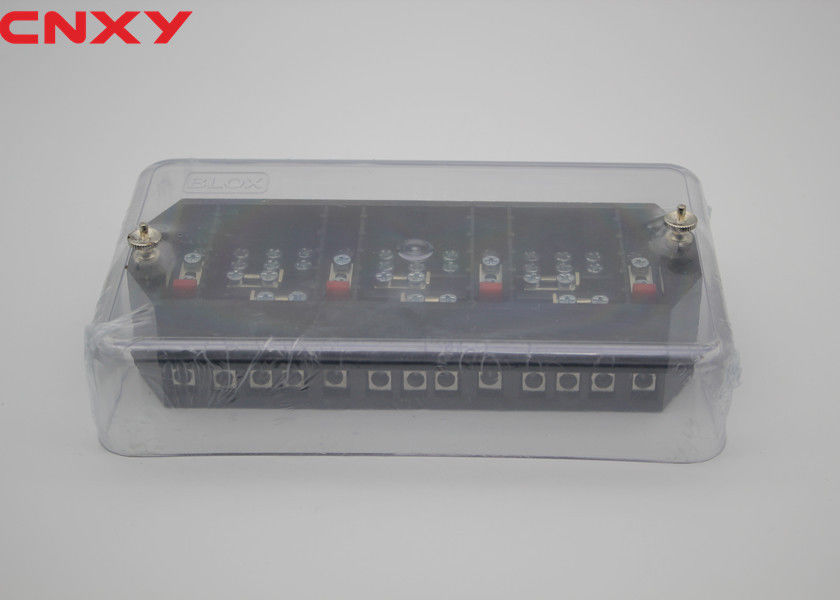

FJ6/DFY1, 2 type energy measuring terminal blocks are special terminal blocks applied for standard wiring in energy measuring equipments.
They are also suitable for secondary circuit of rated voltage up to 660V and rated current up to 20A. They are used to change or inspect the electric equipments such as energy meter, electric instrument and relaying equipment under on-load circumstance. They can guarantee operation safety and improve fieldwork efficiency. In order to satisfy customers' demand, our company improves the design and adopts America-imported high-molecular polycarbonate material
It has advantages of high impact resistance, ageing resistance, anti water-absorption, flame retardant, high temperature resistance. It not only has bright and elegant appearance, but also excellent product performance. It solves former products problems such as fragile, easy mildew stain grow, or heavy CT secondary leakage, easy PT secondary breakdown, etc.. This kind of terminal block is an ideal successor of the older generation.
The technical parameter of this product is in conformity with international standards. Feedback from users shows that new type of this terminal block is capable of preventing missing electric energy measurement. It is helpful for energy measuring work, and can put an end to energy measuring accident effectively.
|Bakelite black plating of NEW FJ16/DFY1 Technical Characteristics|
|Test name||test condition||test method||Value||Units|
|Physical Performance||Shrink rate||JIS K6915||0.40-0.60||%|
|water absorptivity||JIS K6911||0.05-0.10||%|
|Specific Gravity||JIS K7112||1.78|
|mechanical Performance||bending strength||JIS K7171||147-167||MPa|
|Bending elastic degree||JIS K7171||12700-14700||MPa|
|charpy impact strength||JIS K7111||3.9-4.9||KJ/m²|
|strength of extension||JIS K6911||78-98||MPa|
|compression strength||JIS K6911||216-235||MPa|
|Rockwell hardness||JIS K6911||112|
|electrical performance||voltage resistance||JIS K6915||10-12||MV/m|
|insulation resistance||JIS K6915||1010 -1011||Ω|
|thermal performance||fire resistance||UL 94||V-0|
1. Material:cover is PC, base is bakelite. (4000V,60A,European model, PC is anti-throw, good impact resistance, longer service life) The blank of the cover can be made with customers' Logo for free if they show interest.
2.The Test Terminal Block is easy to open without tools,by using this kind of screw on front.
The copper inside are much bigger than the one in our market, mainly used for high-end European market. Please check the picture below:(the left is regular one in the market, the right bigger one is our European type)
3 The copper inside are much bigger than the one in our market, mainly used for high-end European market. Please check the picture below:(the left is regular one in the market, the right bigger one is our European type)
4. Numbered voltage pole, new design, and with 4000V mark (passed Chinese Government laboratory test)
5. Logo and sticker
We can make your logo on the cover,small packing box,and cartons if customers need,to help you better distribute your Brand in the market.
We could also customize the terminal block with btransparent base.
Q:Are you a factory or trading company?
A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?
A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
