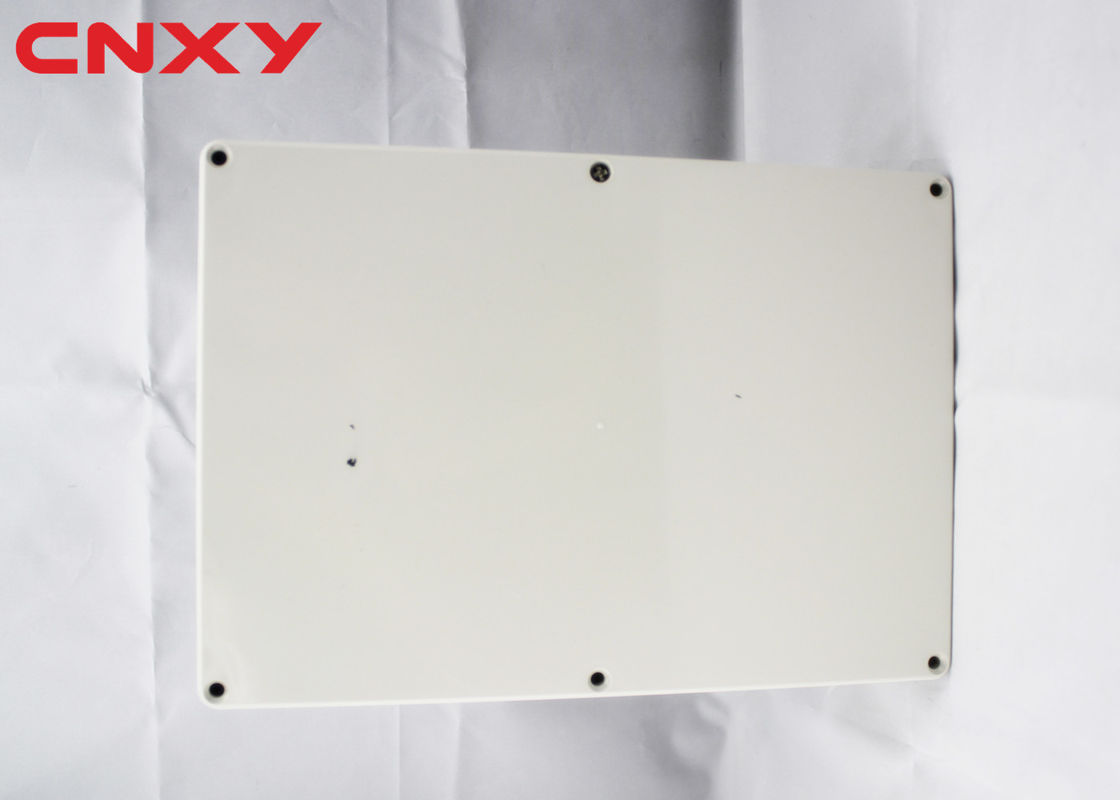

0.16 Inch Portable Weatherproof Receptacle Box Open Close Type With Six Screws

0.16 Inch Portable Weatherproof Receptacle Box Open Close Type With Six Screws

  • 0.16 Inch Portable Weatherproof Receptacle Box Open Close Type With Six Screws
0.16 Inch Portable Weatherproof Receptacle Box Open Close Type With Six Screws
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M1-261809G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS, Other Material Customizable IP Grate: IP65
Color: Grey Size: 263*182*95mm
OEM: Hole Drilling, Color, Logo Printing And So On Weight: 0.64kg
Highlight:

industrial junction box

,

plastic connection box

Dustproof IP65 screw open-close type plastic junction box waterproof enclosure with lid 263*182*95 mm

Product features

  • Ingress Protection Rating: IP65; Country of Manufacture: CHINA
  • Material: Plastic; Net Weight: 640g
  • Package Content: 1 x Junction Box, 6 x Screws; Main Color: Gray
  • Product Name: Junction Box; Outer Size: 263x182x95mm(L*W*H)
  •  Mounting Hole Diameter: 4mm(0.16")

Product description

1. The screws on the lid are made fromsteel, we could supply stainless steel, so will not rust, and easy to turn.
2. The sides of the box are plain to allow you to drill your own cable entries where needed.

Size

ModelDimension(mm)Quantity/ctn
M1-060503G64*58*35560
M1-060503T
M1-080503G83*58*33480
M1-080503T
M1-080805G83*81*56216
M1-080805T
M1-100605G100*68*50280
M1-100605T
M1-110905G115*90*55162
M1-110905T
M1-121209G120*120*9099
M1-121209T
M1-150904G158*90*40165
M1-150906G158*90*60102
M1-150906T
M1-160405G160*45*55
M1-161109G160*110*9042
M1-161109T
M1-161609G160*160*9033
M1-161609T
M1-201205G200*120*5658
M1-201205T
M1-201207G200*120*7580
M1-201207T
M1-201211G200*120*11345
M1-201211T
M1-231507G230*150*8736
M1-231507T
M1-241609G240*160*9023
M1-241609T
M1-241612G240*160*12028
M1-241612T
M1-261806G263*182*6046
M1-261806T
M1-261809G263*182*9521
M1-261809T
M1-261812G263*182*12522
M1-261812T
M1-281913G280*195*13518
M1-302814G300*280*1408
M1-322411G320*240*11014
M1-322411T
M1-322414G320*240*14012
M1-322414T
M1-322415G320*240*15510
M1-382610G380*260*10512
M1-382612G380*260*12012
M1-382614G380*260*14010

Details:

0.16 Inch Portable Weatherproof Receptacle Box Open Close Type With Six Screws 00.16 Inch Portable Weatherproof Receptacle Box Open Close Type With Six Screws 10.16 Inch Portable Weatherproof Receptacle Box Open Close Type With Six Screws 2

  1. Sealing ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion, making much better waterproof and longer lifetime. Or could choose machine sealing service.
  2. In the bottom of the box, there is mounitng stud for mounting terminals, pcb, and other components.
  3. Steel mounting plate available.

OEM service:

Material: ABS, PC, UL,flame resistent
Color: Grey, orange, green, black, and so on. Transparent lid type available.
Hole drilling: round, rectangle, square,
Mounting plate, inner door for some some series.
Electronic components fixing such as cable glands, pcb, terminal.

Advantage:

1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for
choice.

FAQ

Q:Are you a factory or trading company?
A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?
A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
