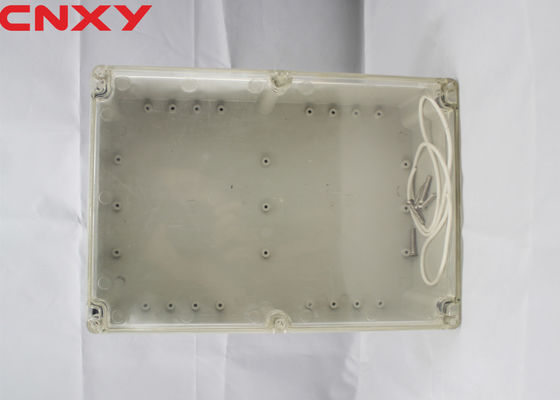

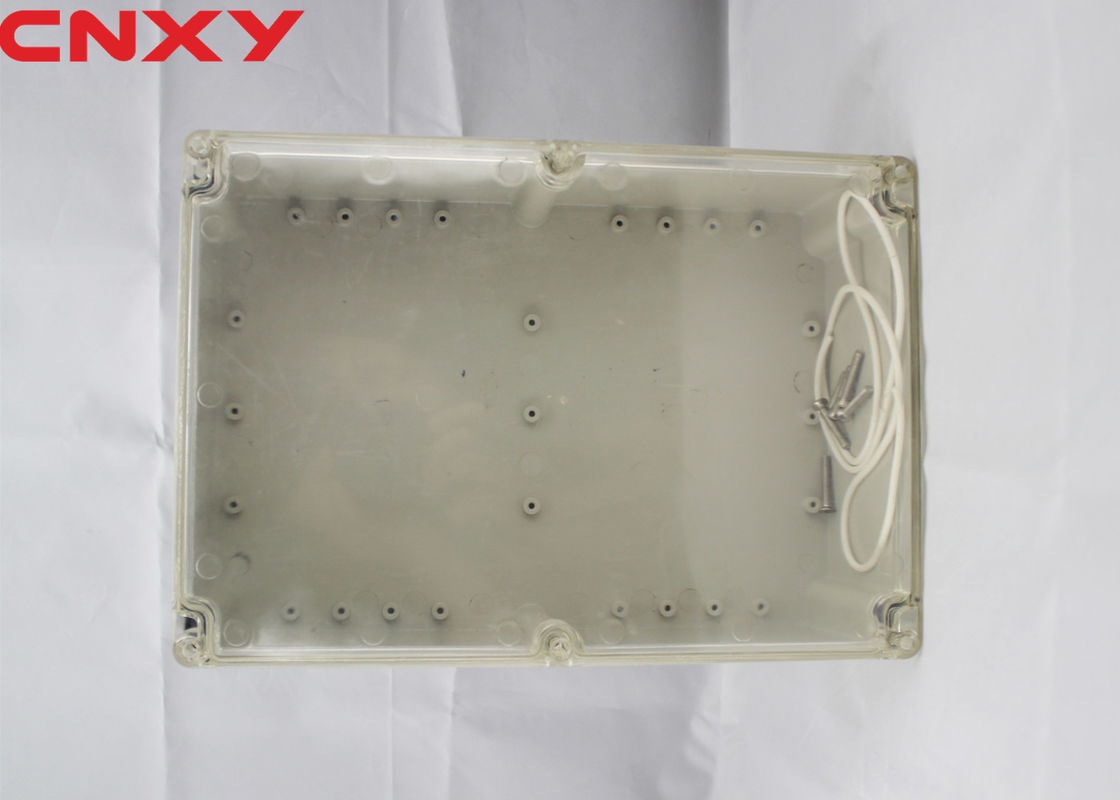

Dustproof IP65 screw open-close type plastic junction box clear waterproof enclosure 263*182*95 mm

Dustproof IP65 screw open-close type plastic junction box clear waterproof enclosure 263*182*95 mm

Dustproof IP65 screw open-close type plastic junction box clear waterproof enclosure 263*182*95 mm

Product Details:

Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M1-261809T

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS+as, Other Material Customizable IP Grate: IP65
Color: Grey Body+transparent Cover Size: 263*182*95mm
OEM: Hole Drilling, Color, Logo Printing And So On Weight: 0.64kg

Dustproof IP65 screw open-close type plastic junction box waterproof enclosure with lid 263*182*95 mm

Item Junction box
Material ABS
Function Waterproof
Protection Class IP65
Shock Resistance IK08
Operating Temperature

ABS -20~120, PC-45~130

Color Light Grey or according your requirement
Function Airtight,waterproof,dustproof,
Applications

1. Indoor and outdoor installations

2. rapid Deployment Installations

3. corrosive environments & hotspot

Packing Plastic film and carton box
Payment terms T/T,L/C,Western Union

Size

Model Dimension(mm) Quantity/ctn
M1-060503G 64*58*35 560
M1-060503T
M1-080503G 83*58*33 480
M1-080503T
M1-080805G 83*81*56 216
M1-080805T
M1-100605G 100*68*50 280
M1-100605T
M1-110905G 115*90*55 162
M1-110905T
M1-121209G 120*120*90 99
M1-121209T
M1-150904G 158*90*40 165
M1-150906G 158*90*60 102
M1-150906T
M1-160405G 160*45*55
M1-161109G 160*110*90 42
M1-161109T
M1-161609G 160*160*90 33
M1-161609T
M1-201205G 200*120*56 58
M1-201205T
M1-201207G 200*120*75 80
M1-201207T
M1-201211G 200*120*113 45
M1-201211T
M1-231507G 230*150*87 36
M1-231507T
M1-241609G 240*160*90 23
M1-241609T
M1-241612G 240*160*120 28
M1-241612T
M1-261806G 263*182*60 46
M1-261806T
M1-261809G 263*182*95 21
M1-261809T
M1-261812G 263*182*125 22
M1-261812T
M1-281913G 280*195*135 18
M1-302814G 300*280*140 8
M1-322411G 320*240*110 14
M1-322411T
M1-322414G 320*240*140 12
M1-322414T
M1-322415G 320*240*155 10
M1-382610G 380*260*105 12
M1-382612G 380*260*120 12
M1-382614G 380*260*140 10

Details:

Dustproof IP65 screw open-close type plastic junction box clear waterproof enclosure 263*182*95 mmDustproof IP65 screw open-close type plastic junction box clear waterproof enclosure 263*182*95 mmDustproof IP65 screw open-close type plastic junction box clear waterproof enclosure 263*182*95 mm

  1. Sealing ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion, making much better waterproof and longer lifetime. Or could choose machine sealing service.
  2. In the bottom of the box, there is mounitng stud for mounting terminals, pcb, and other components.
  3. Steel mounting plate available.

Advantage:

1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for
choice.

Usage:

It is mainly suitable for indoor and outdoor electrical, communications, fire equipment, steel smelting, oil chemical industry, electronics, electric power, railway, construction site, mining, quarry, airport, hotel, ships, large factories,terminal equipment, sewage discharge waste water treatment, environmental hazards, etc.

FAQ

Q:Are you a factory or trading company?
A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?
A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
