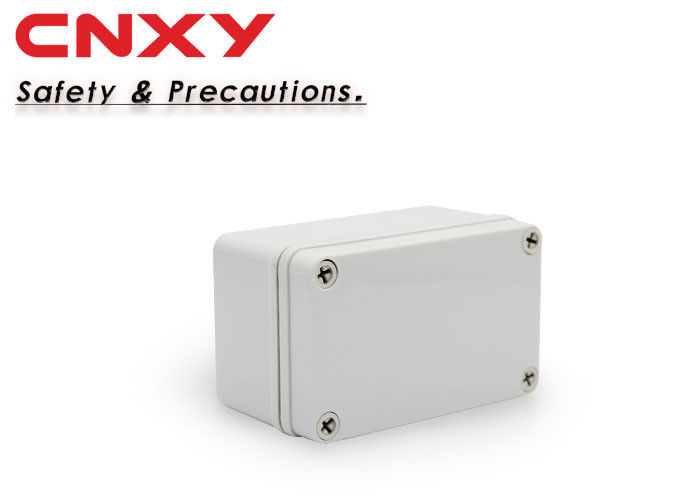

Lightweight Waterproof Junction Box , Outside Electrical Enclosure Box

Lightweight Waterproof Junction Box , Outside Electrical Enclosure Box

Lightweight Waterproof Junction Box , Outside Electrical Enclosure Box

Product Details:

Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M3-130807G

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS, PC Material Could Customized IP Grate: IP67
Color: Grey Model: M3-130807G
Size: 130*80*70mm OEM: Yes

Lightweight Waterproof Junction Box , Outside Electrical Enclosure Box

  • Body material:ABS/PC
  • Material characteristics: Impact,heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
  • Certificates: CE, RoHS
  • Protection grade: IP67
  • Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port,hotel,ship,works,waste water treatment equipment, environmental equipment and so on.





Sizes available

Model Dimension (mm) Mounting plate Cartin size
(cm)
Quantity
(pcs/ctn)
M3-060505 65*50*55 not available 52×40×57 600
M3-090605 95*65*55 built-in 70×53×30 280
M3-090605T
M3-101007 100*100*75 not available 70×53×30 135
M3-101007T
M3-110804 110*80*45 available 68×52×25 190
M3-110804T
M3-110807 110*80*70 70×53×30 156
M3-110807T
M3-110808 110*80*85 68×52×25 108
M3-110808T
M3-130807 130*80*70 68×52×25 108
M3-130807T
M3-130808 130*80*85 68×52×25 90
M3-130808T
M3-180807 180*80*70 68×52×25 74
M3-180807T
M3-250807 250*80*70 68×52×25 54
M3-250807T
M3-250808 250*80*85 68×52×25 48
M3-250808T
M3-121207 125*125*75 68×52×25 72
M3-121207T
M3-121210 125*125*100 68×52×25 50
M3-121210T
M3-171207 175*125*75 70×53×30 54
M3-171210 175*125*100 60×40×65 60
M3-171409 170*140*95 70×53×30 45
M3-171409T
M3-171710 175*175*100 70×53×30 32
M3-201507 200*150*75 60×40×65 60
M3-201507T
M3-201510 200*150*100 60×40×65 48
M3-201510T
M3-201513 200*150*130 68×47×42 30
M3-251510 250*150*100 70×53×30 28
M3-251510T
M3-251513 250*150*130 68×47×52 30
M3-251513T
M3-202009 200*200*95 60×40×65 36
M3-202009T
M3-202013 200*200*130 60×40×65 30
M3-202013T
M3-281913 280*190*130 68×40×58 20
M3-281913T






Details:



Lightweight Waterproof Junction Box , Outside Electrical Enclosure BoxLightweight Waterproof Junction Box , Outside Electrical Enclosure BoxLightweight Waterproof Junction Box , Outside Electrical Enclosure Box

Installation:

  • Inside: there are installation holes in the base for circuit board or din rail( more than 2 pcs of M4 brass nuts have been in each box)
  • Outside: the products can be directly fixed on the wall or other flat boards with screw or nails via the screw holes in the base.

OEM service

Outlet hole: Holes can be opened on the box as customers’ requirements, and installing cable gland can bring with better waterproof performance


Lightweight Waterproof Junction Box , Outside Electrical Enclosure Box



FAQ

1.Q:How can I get the samples?

A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.



2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.



3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.



4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.



5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
