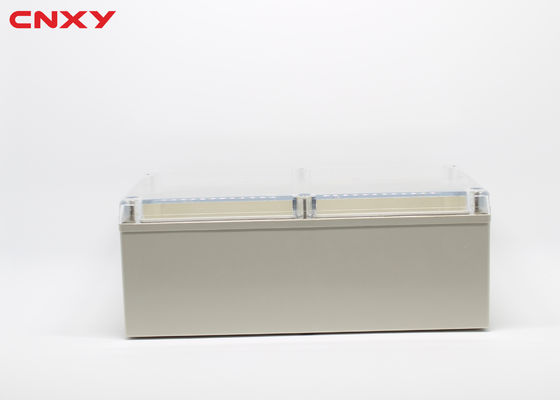

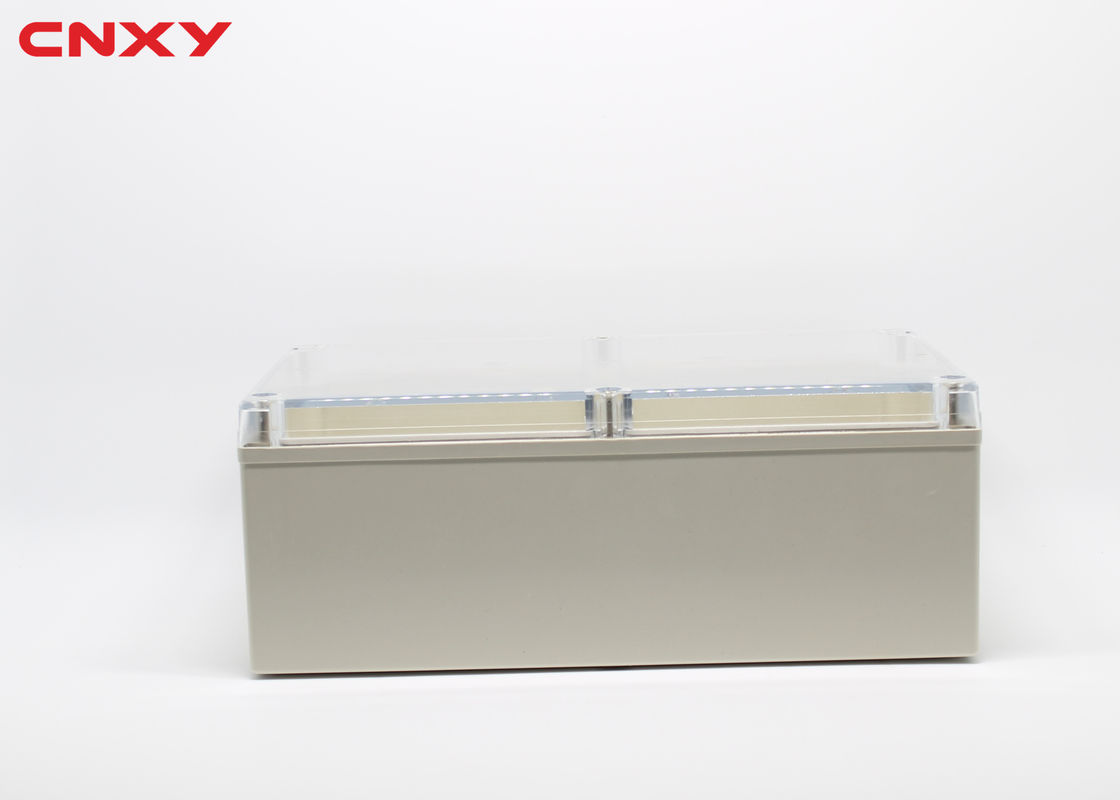

Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm

Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm

  • Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm
Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M1-241609T
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS+AS, Other Material Customizable IP Grate: IP65
Color: Grey Body+clear Lid Size: 240*160*90mm
OEM: Hole Drilling, Color, Logo Printing And So On Weight: 0.5kg
High Light:

plastic electrical boxes

,

industrial junction box

Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm

Product Name: Junction Box
Outer Size: 240*160*90mm (L*W*H)
Main Color: Light Gray, Transparent
Main Material: ABS,AS
Screw Thread Dia.: 4mm(0.16inch)
Rating: IP65
Net Weight: 500g

Size

ModelDimension(mm)Quantity/ctn
M1-060503G64*58*35560
M1-060503T
M1-080503G83*58*33480
M1-080503T
M1-080805G83*81*56216
M1-080805T
M1-100605G100*68*50280
M1-100605T
M1-110905G115*90*55162
M1-110905T
M1-121209G120*120*9099
M1-121209T
M1-150904G158*90*40165
M1-150906G158*90*60102
M1-150906T
M1-160405G160*45*55
M1-161109G160*110*9042
M1-161109T
M1-161609G160*160*9033
M1-161609T
M1-201205G200*120*5658
M1-201205T
M1-201207G200*120*7580
M1-201207T
M1-201211G200*120*11345
M1-201211T
M1-231507G230*150*8736
M1-231507T
M1-241609G240*160*9023
M1-241609T
M1-241612G240*160*12028
M1-241612T
M1-261806G263*182*6046
M1-261806T
M1-261809G263*182*9521
M1-261809T
M1-261812G263*182*12522
M1-261812T
M1-281913G280*195*13518
M1-302814G300*280*1408
M1-322411G320*240*11014
M1-322411T
M1-322414G320*240*14012
M1-322414T
M1-322415G320*240*15510
M1-382610G380*260*10512
M1-382612G380*260*12012
M1-382614G380*260*14010

Sizes available.

Details:

Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm 0Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm 1Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm 2Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm 3Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm 4

  1. Sealing ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion, making much better waterproof and longer lifetime. Or could choose machine sealing service.
  2. In the bottom of the box, there is mounitng stud for mounting terminals, pcb, and other components.
  3. Steel mounting plate available.

Usage:
The box is mainly suitable for indoor and outdoor electrical, communications, fire equipment, steel smelting, oil chemical industry, electronics, electric power, railway, construction site, mining, quarry, airport, hotel, ships, large factories,terminal equipment, sewage discharge waste water treatment, environmental hazards, etc.

Waterproof IP65 ABS electric project box plastic junction box clear waterproof enclosure 240*160*90 mm 5

Service

1. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
2. Answer your question detailed
3. Solved the problem with you during using our products
4. Samples will be offered to you for our future cooperation.
5. Developing molds and its machining
6. Color and material can be changed as your interesting.
7. Additional cost are added for modification and machining depending on the mould.

FAQ

Q:Are you a factory or trading company?
A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?
A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
