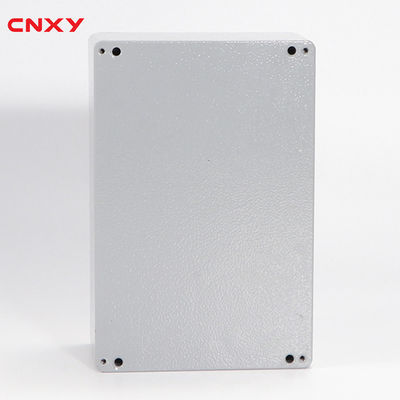

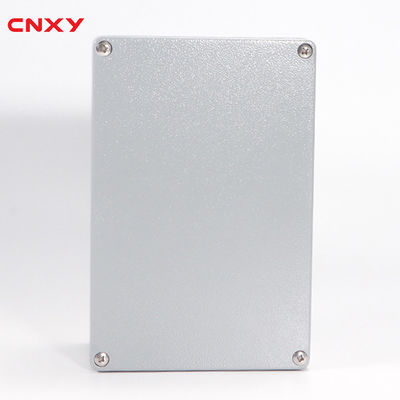

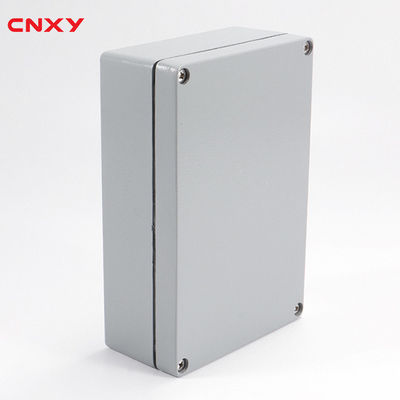

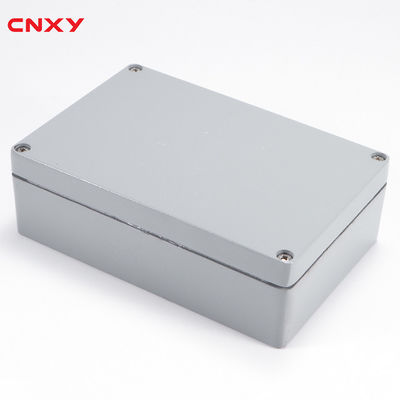

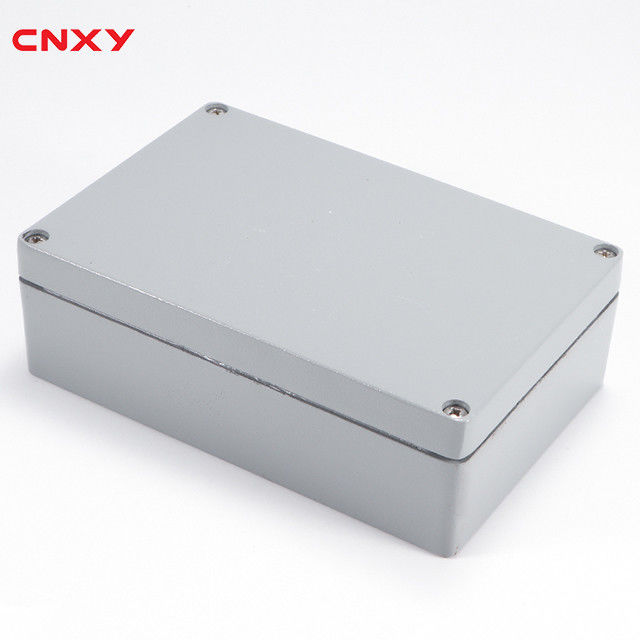

Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures

Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures

  • Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures
  • Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures
  • Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures
  • Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures
  • Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures
  • Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures
Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M4-241607
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: Aluminum IP Grate: IP66
Color: Grey Size: 240*160*75mm
OEM: Yes Weight: 1.6kg
High Light:

aluminum enclosure box

,

aluminium junction box

Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures



Brand Name: CNXY
Model Number: M4-241607
Protection Level: IP66
Type: Junction box

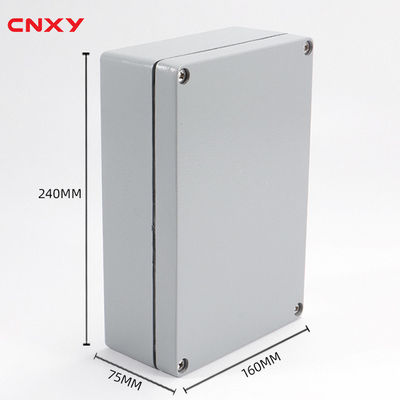

External Size: 240*160*75mm
Material: Aluminum
Mini order: 10pcs
Lead time: Shipped in 3 days or more after payment
Place of Origin: Zhejiang, China(mainland)

Suitable for electric and electronic control equipment, shipbuilding, petrochemical industry, large factories, coastal factories, terminal water treatment facilities, all kinds of natural disaster prevention equipment in harsh industrial environment.

Product adopts plastic bolt design, prevent loss effectively, 1/4 weight of metal box, impact resistance, corrosion resistance, long life, good insulation performance, easy processing.

Sizes available.

Model Size
M4-060503 64*58*35
M4-120805 120*80*55
M4-120805-2 120*80*55
M4-130805 135*85*56
M4-120805-3 125*80*58
M4-181207 188*120*78
M4-181207-2 188*120*78
M4-100605 100*68*50
M4-221405 222*145*55
M4-221405-2 222*145*55
M4-221407 222*145*75
M4-221408 222*145*80
M4-110603 111*64*37
M4-181405 180*140*55
M4-090303 90*36*31
M4-221507 228*150*75
M4-201307 200*130*78
M4-181308 185*135*85
M4-221509 220*155*95
M4-251808 250*185*88
M4-251909 250*190*90
M4-080706 80*75*60
M4-170805 175*80*56
M4-170808 175*80*80
M4-250806 250*80*60
M4-250808 250*80*80
M4-110605 115*65*55
M4-161006 160*100*60
M4-151008 150*100*80
M4-110905 115*90*58
M4-110906 115*90*60
M4-251208 250*120*82
M4-321209 320*120*90
M4-361609 360*160*95
M4-101006 100*100*60
M4-141407 140*140*75
M4-141004 145*100*45
M4-121208 120*120*82
M4-161607 160*160*70
M4-161609 160*160*90
M4-161608 160*160*86
M4-241607 240*160*75
M4-241610 240*160*100
M4-261807 265*185*75
M4-261809 260*185*96
M4-261812 260*185*128
M4-302110 300*210*100
M4-302110 300*210*130
M4-342309 340*235*95
M4-342312 340*235*120
M4-342313 340*235*135
M4-342316 340*235*160


























































Details:

Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures 0Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures 1Wall Mount Aluminum Junction Box , Weatherproof Electrical Enclosures 2

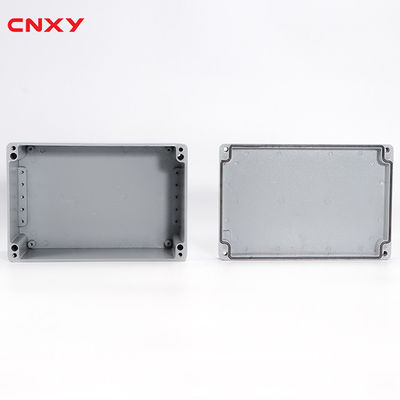

  • Screw holes with barrel,in case of sliding for frequent use
  • The mounting holes at the bottom with screw thread, easy to install mounting plate, din rail, pcb boards and so on.
  • Mounting plate available according to customer’s requirement
  • The mounting holes at the back of box help the fixation with brackets, (some with screw thread, some without.)

Service:

Material: ABS, PC, UL,flame resistent

Color: Grey, orange, green, black, and so on. Transparent lid type available.

Hole drilling: round, rectangle, square,

Mounting plate, inner door for some some series.

Electronic components fixing such as cable glands, pcb, terminal.
