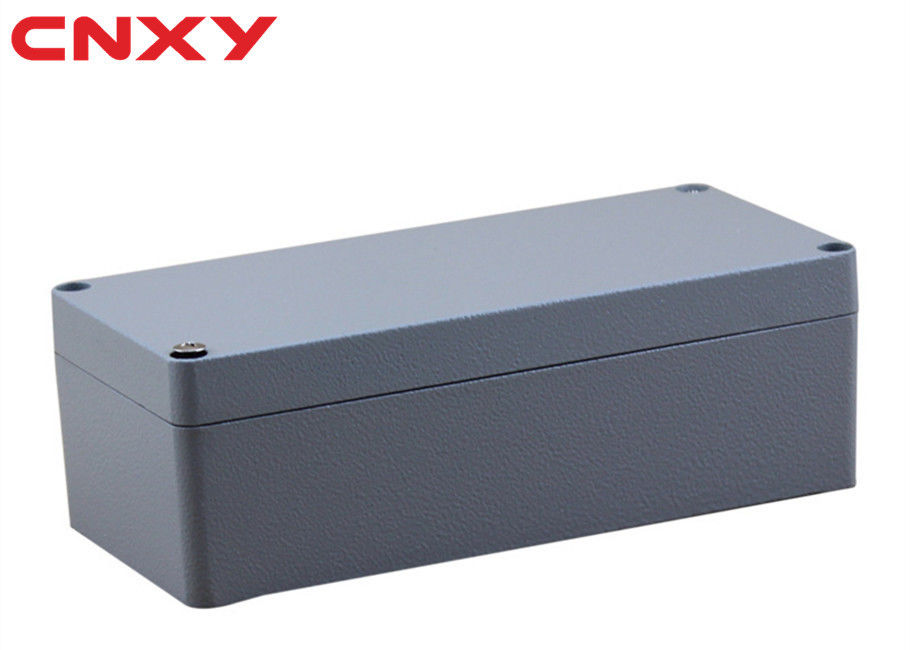

IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm

IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm

  • IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm
IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M4-110603
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: Aluminum IP Grate: IP66
Color: Grey Size: 111*64*37mm
OEM: Yes Weight: 0.22kg
High Light:

aluminum enclosure box

,

aluminium terminal box

IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm

This serial enclosure is widely used for liquid fluid, pressure, moisture etc, sensor industry, with watertight and explosion proof capability, material is aluminum alloy, the color for these enclosure can be changed by painting or coating certain modification can be done according to your requirement.



Model Number M4-110603
Size 111*64*37 mm
Material Aluminium
Color Black/ White/ Silver/ Customized
Protect Grade IP66
Function Waterproof, Dustproof , Musical Effect
Certification CE, RoHS


Sizes available.

Model Size
M4-060503 64*58*35
M4-120805 120*80*55
M4-120805-2 120*80*55
M4-130805 135*85*56
M4-120805-3 125*80*58
M4-181207 188*120*78
M4-181207-2 188*120*78
M4-100605 100*68*50
M4-221405 222*145*55
M4-221405-2 222*145*55
M4-221407 222*145*75
M4-221408 222*145*80
M4-110603 111*64*37
M4-181405 180*140*55
M4-090303 90*36*31
M4-221507 228*150*75
M4-201307 200*130*78
M4-181308 185*135*85
M4-221509 220*155*95
M4-251808 250*185*88
M4-251909 250*190*90
M4-080706 80*75*60
M4-170805 175*80*56
M4-170808 175*80*80
M4-250806 250*80*60
M4-250808 250*80*80
M4-110605 115*65*55
M4-161006 160*100*60
M4-151008 150*100*80
M4-110905 115*90*58
M4-110906 115*90*60
M4-251208 250*120*82
M4-321209 320*120*90
M4-361609 360*160*95
M4-101006 100*100*60
M4-141407 140*140*75
M4-141004 145*100*45
M4-121208 120*120*82
M4-161607 160*160*70
M4-161609 160*160*90
M4-161608 160*160*86
M4-241607 240*160*75
M4-241610 240*160*100
M4-261807 265*185*75
M4-261809 260*185*96
M4-261812 260*185*128
M4-302110 300*210*100
M4-302110 300*210*130
M4-342309 340*235*95
M4-342312 340*235*120
M4-342313 340*235*135
M4-342316 340*235*160






































































Details:

 IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm 0IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm 1IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm 2IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm 3

1Screw holes with barrel,in case of sliding for frequent use

2The mounting holes at the bottom with screw thread, easy to install mounting plate, din rail, pcb boards and so on.

3Mounting plate available according to customer’s requirement

4The mounting holes at the back of box help the fixation with brackets, (some with screw thread, some without.)

Service:

1.Any shape hole could be drilled by laser cutter . (Grand connected for wire through)
2.Silk-screen and Laster pring could be done. (Show your company logo and name)
3.Mounting place could be done. (Install other electronic enclosure)
4.The material and color of the products could be modified as required.
5.New mould for your customized design could be accepted.

IP66 dustproof junction box aluminum junction box waterproof enclosure for electronics 111*64*37mm 4
