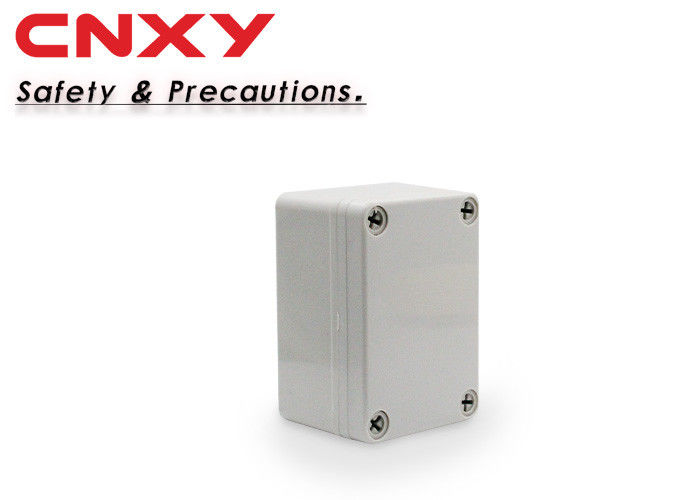

ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing

ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing

  • ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing
ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M3-090605G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS/PC IP Grate: IP67
Color: Grey Model: M3-090605G
Size: 95*65*55mm OEM: Yes
High Light:

waterproof electrical junction box

,

weatherproof connection box

ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing



ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing 0

Our Enclosures are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets. They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ( protect instruments even under the adverse environment).

Material: ABS, accepet PC customization

Protection rank up to IP 67.

Color:RAL-7032

Dimension: 95*65*55mm

Working temperature: -20 to 120 ℃.

Cover: Transparent cover and nontransparent cover optional.

OEM: Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.



Sizes available.

Model Dimension (mm) Mounting plate Cartin size
(cm)
Quantity
(pcs/ctn)
M3-060505 65*50*55 not available 52×40×57 600
M3-090605 95*65*55 built-in 70×53×30 280
M3-090605T
M3-101007 100*100*75 not available 70×53×30 135
M3-101007T
M3-110804 110*80*45 available 68×52×25 190
M3-110804T
M3-110807 110*80*70 70×53×30 156
M3-110807T
M3-110808 110*80*85 68×52×25 108
M3-110808T
M3-130807 130*80*70 68×52×25 108
M3-130807T
M3-130808 130*80*85 68×52×25 90
M3-130808T
M3-180807 180*80*70 68×52×25 74
M3-180807T
M3-250807 250*80*70 68×52×25 54
M3-250807T
M3-250808 250*80*85 68×52×25 48
M3-250808T
M3-121207 125*125*75 68×52×25 72
M3-121207T
M3-121210 125*125*100 68×52×25 50
M3-121210T
M3-171207 175*125*75 70×53×30 54
M3-171210 175*125*100 60×40×65 60
M3-171409 170*140*95 70×53×30 45
M3-171409T
M3-171710 175*175*100 70×53×30 32
M3-201507 200*150*75 60×40×65 60
M3-201507T
M3-201510 200*150*100 60×40×65 48
M3-201510T
M3-201513 200*150*130 68×47×42 30
M3-251510 250*150*100 70×53×30 28
M3-251510T
M3-251513 250*150*130 68×47×52 30
M3-251513T
M3-202009 200*200*95 60×40×65 36
M3-202009T
M3-202013 200*200*130 60×40×65 30
M3-202013T
M3-281913 280*190*130 68×40×58 20
M3-281913T






Advantage:

1.100% ABS, none recycled material
2.High waterproof: IP67
3.Plastic screw: not easy to rust, fall-out prevented
4.Machine formed gasket, no need to insert gasket by hands
5. Matched plate self-built-in, easier for installation.



Details:



ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing 1

ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing 2



Application:

It is convenient for the general &mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.

Feature: Waterproof, dust-proof, high-strength insulation. Any opening is available according to the customers’ demands, it is very complete in specification and convenient in installation.

ABS IP67 grey lid waterproof junction box 95*65*55mm with CNC machine sealing 3
