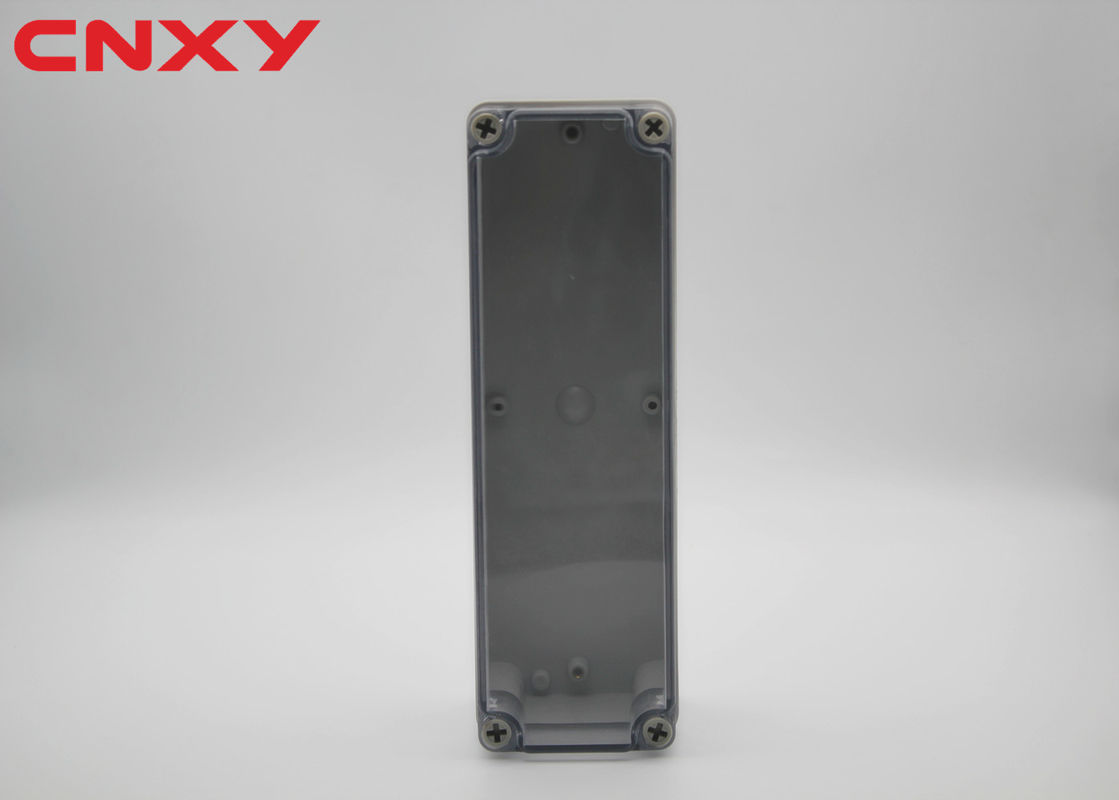

Weatherproof electric enclosure instrument box waterproof junction box transparent cover project box 250*80*85mm

Weatherproof electric enclosure instrument box waterproof junction box transparent cover project box 250*80*85mm

  • Weatherproof electric enclosure instrument box waterproof junction box transparent cover project box 250*80*85mm
Weatherproof electric enclosure instrument box waterproof junction box transparent cover project box 250*80*85mm
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M3-250808T
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS+PC, Material Could Be Customized IP Grate: IP67
Color: Grey Body, Clear Cover Size: 250*80*85mm
OEM: Yes Weight: 0.34kg
Highlight:

waterproof electrical junction box

,

watertight junction box

Weatherproof electric enclosure instrument box waterproof junction box transparent cover project box 250*80*85mm

Brand Name: CNXY
Model Number: M3-250807T
Protection Level: IP67
Type: Junction box
External Size: 250*80*70mm
Material: ABS/PC
Mini order: 1pcs
Lead time: Shipped in 3 or more days after payment
Place of Origin: Zhejiang, China(mainland)

Suitable for electric and electronic control equipment, shipbuilding, petrochemical industry, large factories, coastal factories, terminal water treatment facilities, all kinds of natural disaster prevention equipment in harsh industrial environment.

Product adopts plastic bolt design, prevent loss effectively, 1/4 weight of metal box, impact resistance, corrosion resistance, long life, good insulation performance, easy processing.


Sizes available

Model Dimension(mm)
M3-060505 65*50*55
M3-090605 95*65*55
M3-090605T
M3-101007 100*100*75
M3-101007T
M3-110804 110*80*45
M3-110804T
M3-110807 110*80*70
M3-110807T
M3-110808 110*80*85
M3-110808T
M3-130807 130*80*70
M3-130807T
M3-130808 130*80*85
M3-130808T
M3-180807 180*80*70
M3-180807T
M3-250807 250*80*70
M3-250807T
M3-250808 250*80*85
M3-250808T
M3-121207 125*125*75
M3-121207T
M3-121210 125*125*100
M3-121210T
M3-171207 175*125*75
M3-171210 175*125*100
M3-171409 170*140*95
M3-171409T
M3-171710 175*175*100
M3-201507 200*150*75
M3-201507T
M3-201510 200*150*100
M3-201510T
M3-201513 200*150*130
M3-251510 250*150*100
M3-251510T
M3-251513 250*150*130
M3-251513T
M3-202009 200*200*95
M3-202009T
M3-202013 200*200*130
M3-202013T
M3-281913 280*190*130
M3-281913T



Details:

1Appearance

Injection molding ABS enclosure, made from new imported material, built in rib reinforcement, which is well designed, anti distortion, waterproof, dust-proof, and insulated, with longer service life.

2Sealingring

Adopt German imported foaming machine, the foamed sealing ring form together with the enclosure body. Has the feature of high waterproof dust-proof and tightness.

3Wiring Pole

Enclosure has at least two or more copper nut, easy for users to install circuit board, din rail and bottom board. It can be repeated dis-assembly, avoiding the self-tapping screws slide wire problems.(Enclosure comes with two matching M4screws)

4Screw

Adopt imported reinforced PC injection plastic molding, the anti-screw has the feature of high strength, insulation, corrosion resistance, easy to install. It solve the problem of screws falling when using.

5Installation

Two types of installation

1Through the screw holes on the back of enclosure, using self-tapping screws mounted enclosure on the wall.

2Reserved mounting hole, back on the enclosure, can e equipped with hanging corner, fixed mounted enclosure on the wall.



OEM service:

1.Any shape hole could be drilled by laser cutter . (Grand connected for wire through)
2.Silk-screen and Laster pring could be done. (Show your company logo and name)
3.Mounting place could be done. (Install other electronic enclosure)
4.The material and color of the products could be modified as required.
5.New mould for your customized design could be accepted.
 Weatherproof electric enclosure instrument box waterproof junction box transparent cover project box 250*80*85mm 0

FAQ

1.Q:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.

2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.

3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.

4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.

5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
