Place of Origin: | China |
Brand Name: | CNXY |
Certification: | CE, RoHS |
Model Number: | M2-100604G |
Minimum Order Quantity: | 10 |
---|---|
Packaging Details: | common carton |
Delivery Time: | samples 2-3 working days, large quantity 7-20 working days |
Payment Terms: | T/T, Western Union, paypal |
Supply Ability: | 1000pcs per week |
Material: | ABS,other Material Available | IP Grate: | IP65 |
---|---|---|---|
Color: | Grey | Size: | 100*68*40mm |
OEM: | Yes | Temperature: | ABS -20~120℃, PC-45~130℃ |
Highlight: | plastic enclosure box,electronic project enclosure |

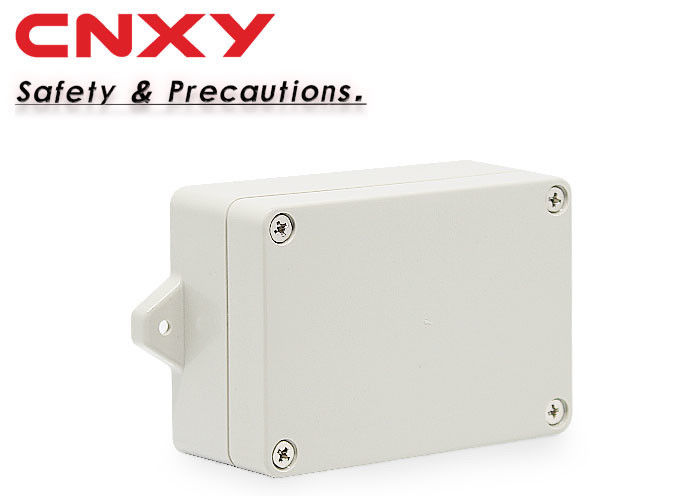

Material: ABS
Waterproof rate: Ip65
Color: Grey
Size:100*68*40mm
Features:
High quality, durable, easy install
Non-corrosive, anti-static, insulation resistance
Waterproof, damp-proof
Fitment:
Fit for various control boxes, cabinets, power distribution meter box
Widely Use in Daily Life: This Junction Electric Enclosure is designed with a suitable size,which is perfect for indoors and outdoors electronics, communications, fire fighting equipment, power supply units, amplifiers, airports, hotels, ships, large factories and so on
Easy to Operate and Repair: Since it is made of ABS plastic material, no need to use other complex tools, such as no cable cutting.You can finish it independently with several of steps, more convenient and safer to install and repair
Environmental Friendly: This Electric Enclosure Box is Completely non-toxic, you can use it reassuring. There's no harmful substances produced during your using time, more environmentally friendly than other products
Model | Dimension(mm) | Carton size (cm) |
Quantity (pcs/ctn) |
M2-060503G | 64*58*35 | 68*52*25 | 448 |
M2-060503T | |||
M2-080503G | 83*58*33 | 68*52*25 | 380 |
M2-080503T | |||
M2-100604G | 100*68*40 | 70*53*30 | 304 |
M2-100604T | |||
M2-100605G | 100*68*50 | 70*53*30 | 240 |
M2-100605T | |||
M2-110803G | 115*85*35 | 70*53*30 | 210 |
M2-110803T | |||
M2-110905G | 115*90*55 | 70*53*30 | 144 |
M2-110905T | |||
M2-110906G | 115*90*68 | 68*52*25 | 84 |
M2-110906T | |||
M2-121005G | 125*100*52 | 70*53*30 | 138 |
M2-120806G | 120*81*65 | 68*52*25 | 102 |
M2-120806T | |||
M2-150904G | 158*90*46 | 70*53*30 | 117 |
M2-150904T | |||
M2-150906G | 158*90*64 | 70*53*30 | 90 |
M2-150906T | |||
M2-161609G | 160*160*90 | 70*53*30 | 36 |
M2-161609T | |||
M2-201207G | 200*120*75 | 68*52*25 | 42 |
M2-201207T | |||
M2-231508G | 230*150*87 | 70*53*30 | 28 |
M2-231508T |
We also produce other type of boxes, hinged ones, lockable ones, aluminum ones and so on.
Material: ABS, PC, UL,flame resistent
Color: Grey, orange, green, black, and so on. Transparent lid type available.
Hole drilling: round, rectangle, square,
Mounting plate, inner door for some some series.
Electronic components fixing such as cable glands, pcb, terminal.
Ideally suited for mounting printed circuit boards or used as junction boxes. Also suitable for mounting modular electric installation devices.
Product designed to meet IP66. Lap joint construction and rubber sealing strip between lid and base provides protection against access dust and water.
Besides, with futures of shock resistance, rustproof, long lifetime, good insulating property, easy machining, the product are widely used in electronic and electrical industry.
