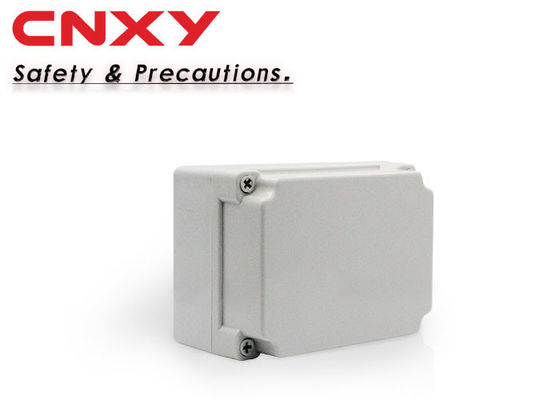

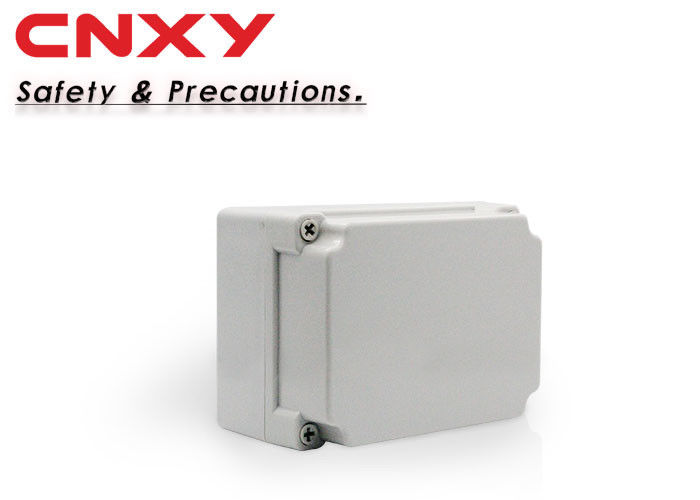

External Cable Waterproof Junction Box Long Life Span With Sealing Ring

External Cable Waterproof Junction Box Long Life Span With Sealing Ring

  • External Cable Waterproof Junction Box Long Life Span With Sealing Ring
External Cable Waterproof Junction Box Long Life Span With Sealing Ring
Product Details:
Place of Origin: China
Brand Name: CNXY
Certification: CE, RoHS
Model Number: M3-171210G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: common carton
Delivery Time: samples 2-3 working days, large quantity 7-20 working days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Material: ABS, Material Could Be Customized IP Grate: IP67
Color: Grey Size: 175*125*100mm
OEM: Yes Weight: 0.3kg
High Light:

weatherproof connection box

,

watertight junction box

External Cable Waterproof Junction Box Long Life Span With Sealing Ring



High-end type plastic waterproof box adopts high quality ABS engineering plastics or polycarbonate(PC)material, suitable for electrical and electronic control equipment, shipbuilding, petrochemical industry, large factories, coastal factories, terminal water treatment facilities, all kinds of natural disaster prevention equipment in harsh industrial environment. Product adopt plastic bolt design, prevent loss effectively.1/4 weight of metal box, impact resistance, corrosion resistance, long life, good insulation performance, easy processing.

Sizes available



Model Dimension(mm)
M3-060505 65*50*55
M3-090605 95*65*55
M3-090605T
M3-101007 100*100*75
M3-101007T
M3-110804 110*80*45
M3-110804T
M3-110807 110*80*70
M3-110807T
M3-110808 110*80*85
M3-110808T
M3-130807 130*80*70
M3-130807T
M3-130808 130*80*85
M3-130808T
M3-180807 180*80*70
M3-180807T
M3-250807 250*80*70
M3-250807T
M3-250808 250*80*85
M3-250808T
M3-121207 125*125*75
M3-121207T
M3-121210 125*125*100
M3-121210T
M3-171207 175*125*75
M3-171210 175*125*100
M3-171409 170*140*95
M3-171409T
M3-171710 175*175*100
M3-201507 200*150*75
M3-201507T
M3-201510 200*150*100
M3-201510T
M3-201513 200*150*130
M3-251510 250*150*100
M3-251510T
M3-251513 250*150*130
M3-251513T
M3-202009 200*200*95
M3-202009T
M3-202013 200*200*130
M3-202013T
M3-281913 280*190*130
M3-281913T



Details:

External Cable Waterproof Junction Box Long Life Span With Sealing Ring 0

  • Sealing ring is made by polylactic acid gel, with high elasticity, high resistance to corrosion, making much better waterproof and longer lifetime.
  • Screw professional plastic screws, will not rust or out of shape because of time passing. Unique design to avoid falling off, effectively avoid screws missing.
  • Inside: there are installation holes in the base for circuit board or din rail( more than 2 pcs of M4 brass nuts have been in each box)



OEM service:

Material: ABS, PC, UL,flame resistent

Color: Grey, orange, green, black, and so on. Transparent lid type available.

Hole drilling: round, rectangle, square,

Mounting plate, inner door for some some series.

Electronic components fixing such as cable glands, pcb, terminal.

FAQ

1.Q:How can I get the samples?

A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.



2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.



3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.



4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.



5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
