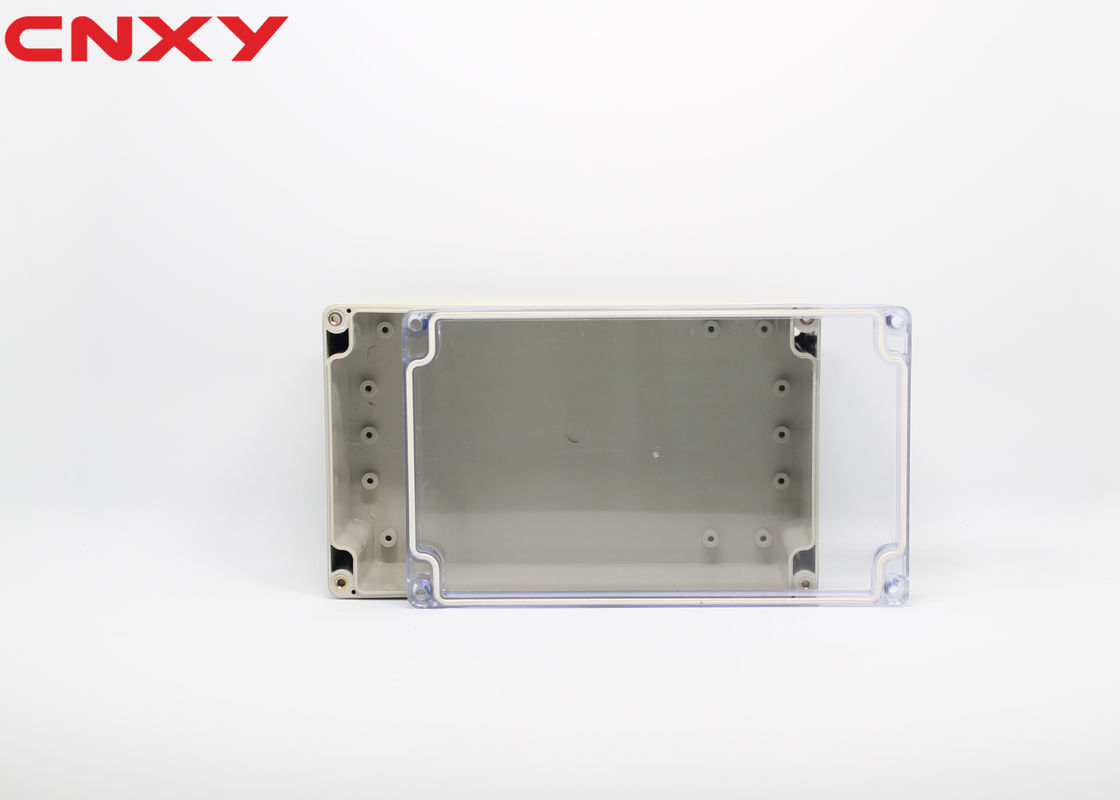

Water Resistant Industrial Plastic Junction Box Copper Thread With Clear Lid

Product Details:

Place of Origin:	China
Brand Name:	CNXY
Certification:	CE, RoHS
Model Number:	M1-201207T

Payment & Shipping Terms:

Minimum Order Quantity:	10
Packaging Details:	common carton
Delivery Time:	samples 2-3 working days, large quantity 7-20 working days
Payment Terms:	T/T, Western Union, paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Material:	ABS+as, Other Material Available	IP Grate:	IP65
Color:	Grey Body+clear Lid	Size:	20012075mm
OEM:	Hole Drilling, Color, Logo Printing And So On	Sealing:	Formed Sealing Ring, Need Inserting By Hand
High Light:	plastic electrical boxes , plastic connection box

Water Resistant Industrial Plastic Junction Box Copper Thread With Clear Lid

Our Enclosures are designed to meet the highest standards of protection demanded by electrical and electronics designers, serving both industrial and commercial markets. They are the ideal choice for housing electrical and electronic equipment of high value with better anti-corrosion performance ( protect instruments even under the adverse environment).
Material: ABS, PC, PG, PBT available.
Protection rank up to IP 65.
Carried Standard: EN60529 IP65.
Working temperature: -20 oC to 120 oC.
Transparent cover and nontransparent cover optional.
Full range of sizes available.
Certain modification can be done according to your requirements, such as drilling, painting, punching, silk-screen printing, power coating and etc.

Size

Model	Dimension(mm)	Quantity/ctn
M1-060503G	645835	560
M1-060503T
M1-080503G	835833	480
M1-080503T
M1-080805G	838156	216
M1-080805T
M1-100605G	1006850	280
M1-100605T
M1-110905G	1159055	162
M1-110905T
M1-121209G	12012090	99
M1-121209T
M1-150904G	1589040	165
M1-150906G	1589060	102
M1-150906T
M1-160405G	1604555
M1-161109G	16011090	42
M1-161109T
M1-161609G	16016090	33
M1-161609T
M1-201205G	20012056	58
M1-201205T
M1-201207G	20012075	80
M1-201207T
M1-201211G	200120113	45
M1-201211T
M1-231507G	23015087	36
M1-231507T
M1-241609G	24016090	23
M1-241609T
M1-241612G	240160120	28
M1-241612T
M1-261806G	26318260	46
M1-261806T
M1-261809G	26318295	21
M1-261809T
M1-261812G	263182125	22
M1-261812T
M1-281913G	280195135	18
M1-302814G	300280140	8
M1-322411G	320240110	14
M1-322411T
M1-322414G	320240140	12
M1-322414T
M1-322415G	320240155	10
M1-382610G	380260105	12
M1-382612G	380260120	12
M1-382614G	380260140	10

Sizes available.

Details:

A white gasket is put inside the box. It needs inserting by clients. And we provide hand-inserting service,also machine sealing. Latter is recommend.
In the bottom of the box, there is mounitng stud for mounting terminals, pcb, and other components.
Steel mounting plate available.
Installation:there are installation holes in the base for circuit board or din rail.

Advantage

1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or moved,The product is free from corrosion,carries superior insulation.
2.Waterproof and dust-free product which gets through strict quality inspections. Proved quality in many related tests(IP 66).
3.The use is also convenient for the installation of Terminal Substitution Rail, button box, mini terminal, signal box,Relay and Sensor, Communication and joint Box etc.
waterproof enclosure

Service

Material: ABS, PC, UL,flame resistent
Color: Grey, orange, green, black, and so on. Transparent lid type available.
Hole drilling: round, rectangle, square,
Mounting plate, inner door for some some series.
Electronic components fixing such as cable glands, pcb, terminal.

FAQ

Q:Are you a factory or trading company?
A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?
A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
